14mm Electret Condenser Microphone Element for Live Broadcast

Electret Condenser Microphone Element for Live Broadcast 14mm

ECM-B1465UL38RC-110 microphone frequency response chart, showing sensitivity and performance across the frequency range

ECM-B1465UL38RC-110 microphone circuit diagram and dimensions, showing key components and size

ECMIC microphones 12,000 m² factory with 6M+ units monthly output and ISO/CE certifications

ECMIC microphones automated production line overview, showing assembly and quality control process

The ECM-B1465UL38RC-110 is a 14 × 6.5 mm unidirectional microphone capsule, ideal for live streaming applications. It offers a sensitivity of -38dB±2 and a signal-to-noise ratio of 67dB, ensuring high-quality audio performance.

🎙️ ECMIC – Microphone Components Manufacturers
For audio equipment manufacturers & brands
Wholesale & OEM/ODM | 📧 Contact us

🧪 Sample

Standard model free
Shipping cost applies

🧭 Trial Order

From 200 pcs
Test before full order

📦 MOQ

5,000 pcs
Full order minimum

Model: ECM-B1465UL38RC-110
Dimensions: 14 × 6.5 mm
Directivity: Unidirectional
Sensitivity: -38 dB ± 2
Impedance: 680 Ω
S/N Ratio: 67 dB
Max SPL: 110 dB
Operating Voltage: 1.5 Vdc
Frequency Response: 100 Hz ~ 16 kHz
Current Consumption: 500 μA

Tags: 14mm Electret Solder Pads Electret Vocal Mics

Technical Specifications

Our 1465 Electret Microphone Capsule features a high signal-to-noise ratio and low noise, ensuring high fidelity. Crafted from eco-friendly materials, it offers strong anti-interference capabilities, suitable for live streaming and recording.

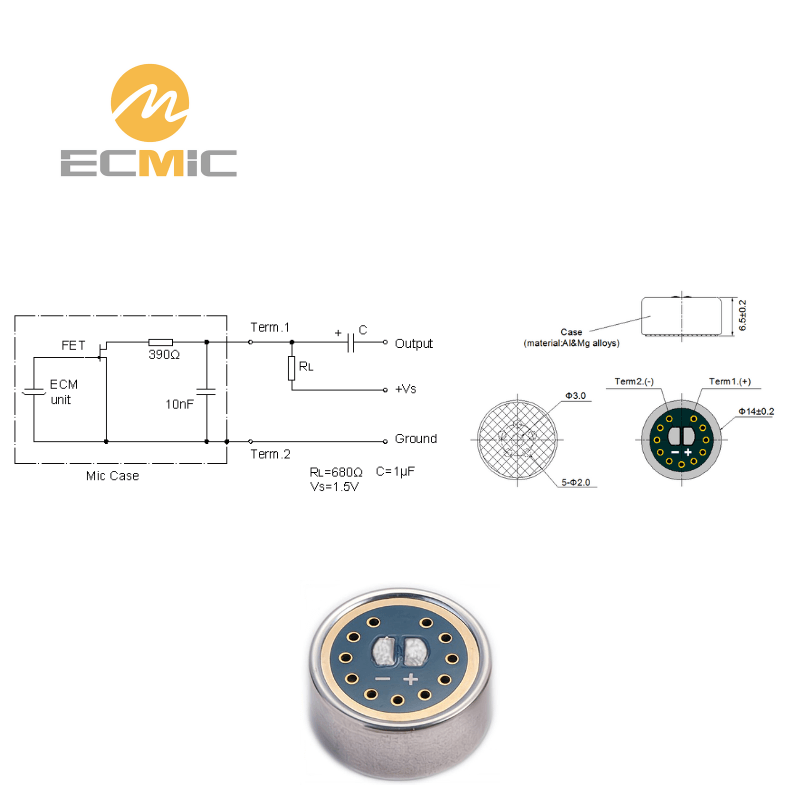

Standard Test Circuit

Tested under the following conditions: RL = 680Ω, Vs = 1.5V, C = 1µF.

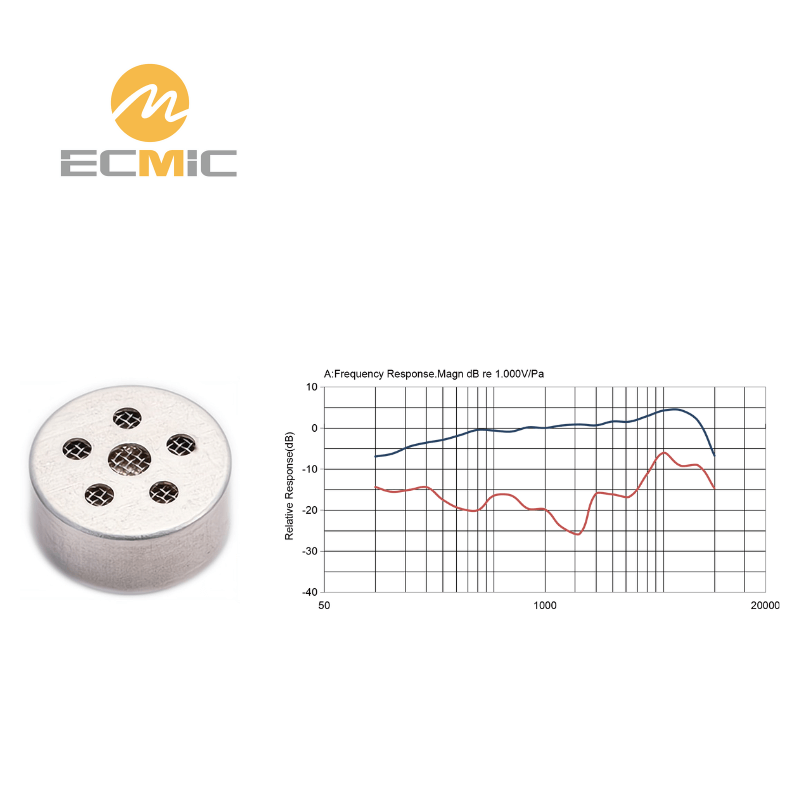

Typical Frequency Response

Frequency response exhibits a consistent upward trend from 100Hz to around 10kHz, followed by a gradual roll-off toward 16kHz.

Dimensions (UNIT: mm)

Appearance Dimension

Capsule measures 14mm in diameter and 6.5mm in height, featuring a rear acoustic port.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
