20mm Dynamic Microphone Capsule for Saxophone

Key features of 20mm dynamic microphone capsule: directional, high output, low distortion

ECM-DM2025-2K600 microphone capsule size and frequency response

Durable handheld dynamic microphone element for live vocal performances and public speaking.

Compact dynamic microphone capsule designed to attach to saxophones and brass instruments for live sound pickup.

Microphone element designed for public address systems, providing robust and clear vocal amplification.

Dynamic microphone capsule engineered for saxophone pickup, featuring a directional response, 600Ω impedance, and a tailored frequency range to deliver rich, natural sound in live performance settings.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For intercom & headset makers
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

3,000 pcs (mixed models allowed)

Model: ECM-DM2025-2K600
Dimensions: 20.4 × 24.9 mm
Weight: 8.8 g
Directivity: Unidirectional
Sensitivity: -56 dB ± 3
Impedance: 600 Ω ± 15%
S/N Ratio: 60 dB
Max SPL: 110 dB
Frequency Response: 100 Hz ~ 15 kHz

Tags: 20mm Dynamic Instrument Mics

Technical Specifications

The DM2025-2K600 dynamic microphone capsule is specifically designed for wind instruments—especially saxophones—featuring a durable construction and focused acoustic performance. Its 20.4 mm cylindrical frame houses a robust coil and diaphragm system that delivers warm lows and well-defined mids, making it ideal for live sound reinforcement.

With a frequency response spanning 100Hz to 15kHz and a stable 600Ω output impedance, this capsule integrates seamlessly into clip-on instrument microphones designed for saxophones, with additional compatibility for handheld microphone applications in versatile live and studio settings. It provides clear and precise pickup of vocals and instruments while maintaining excellent feedback resistance.

Engineered to withstand demanding environments, the DM2025-2K600 is an excellent choice for manufacturers seeking rugged, purpose-built dynamic microphone elements tailored for both performance and communication applications.

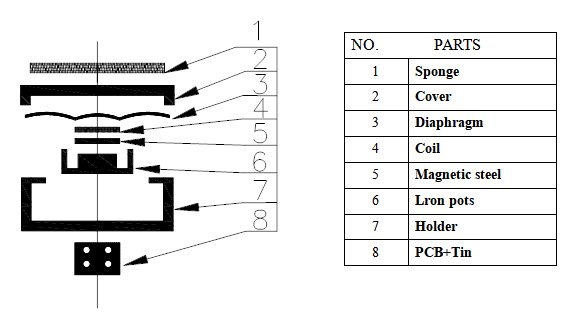

Exploded View & Parts List

Exploded View

Structure includes: Sponge, Cover, Diaphragm, Coil, Magnetic Steel, Iron Pots, Holder, PCB with Tin Plating.

Typical Frequency Response

Frequency Response

The frequency response spans from 100Hz to 15kHz, delivering solid lows, articulate mids, and a smooth high-frequency roll-off—well-suited for wind instrument pickup.

Dimensions (UNIT: mm)

Dimensions

Φ20.4 × 24.9mm cylindrical design.

Reliability Tests

High Temperature Test: Microphone subjected to +60℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Low Temperature Test: Microphone subjected to -25℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Humidity Test: Microphone exposed to 40℃ and 90-95% relative humidity for 96 hours, followed by 6 hours of normal temperature lay.

Temperature Cycle Test: Microphone subjected to rapid temperature changes from normal temperature to +60℃ ±3℃ for 1 hour (normal temperature lay for 3 hours) and then to -25℃ ±3℃ for 1 hour (normal temperature lay for 3 hours).

Sensitivity Stability: Sensitivity remains within ±3dB of the initial sensitivity after each environmental test.
