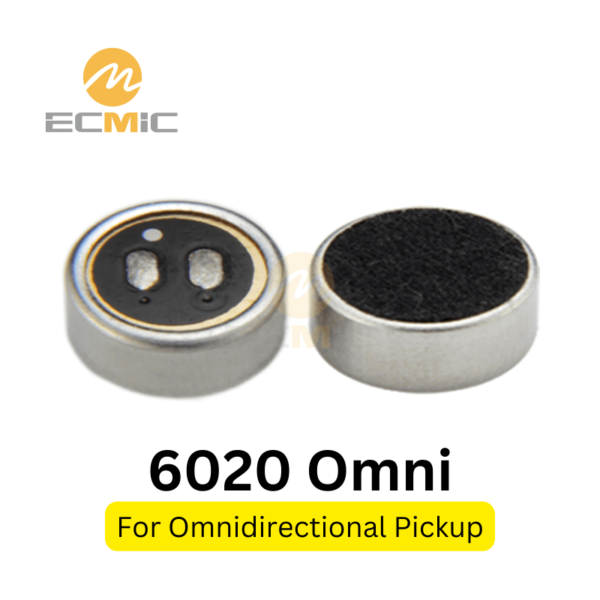

6mm High SNR Omnidirectional Microphone Capsule

The ECM-B6020AL34-344 is a 6 × 2 mm omnidirectional microphone capsule designed for applications such as document cameras, Bluetooth speakers, intercoms, and lapel microphones. It provides high-quality, clear audio capture from all directions with a sensitivity of -34dB±2 and a signal-to-noise ratio of 70dB. This microphone ensures reliable performance across various audio environments.

Model: ECM-B6020AL34-344
Dimensions: 6 × 2 mm
Directivity: Omnidirectional
Sensitivity: -34 dB ± 2
Impedance: 2.2 kΩ
S/N Ratio: 70 dB
Max SPL: 110 dB
Operating Voltage: 2 Vdc
Frequency Response: 50 Hz ~ 20 kHz
Current Consumption: 500 μA

Request Information / Sample

Tell us your project stage. Our engineering team will respond accordingly.

Lead Time

Samples: 1–3 weeks
Mass production: 2–4 weeks

Customization

Application-based engineering support
Structure / sensitivity / acoustic tuning

MOQ

3,000 pcs
Per model / per production batch

Certification

RoHS & UL compliant
Industrial reliability assured

Technical Specifications

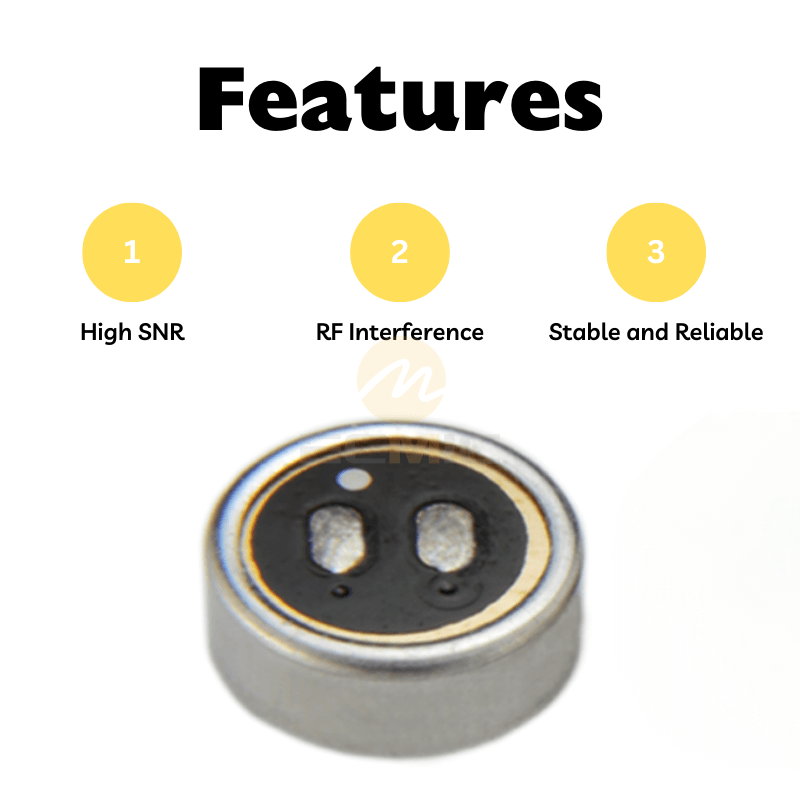

Our 6020 omnidirectional noise-cancelling microphone core features high sensitivity and a high signal-to-noise ratio. It provides effective noise reduction and interference resistance while being environmentally friendly.

Standard Test Circuit

Test conditions: RL = 2.2kΩ, Vs = 2V, C = 1μF

Typical Frequency Response

Frequency response covers 50Hz to 20kHz, maintaining a flat profile up to around 3kHz. Beyond this point, the response begins to gradually roll off in stages, ensuring balanced output for voice and ambient applications.

Dimensions (UNIT: mm)

Appearance Dimension

Capsule measures 6mm in diameter and 2mm in height. The front is equipped with a dustproof mesh, and the rear is sealed with no acoustic opening.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
