6mm Omnidirectional Electret Condenser Microphone Cartridge for Lavalier

Name: 6mm Omnidirectional Electret Condenser Microphone Cartridge for Lavalier - ECMIC
SKU: ECM-B6027AL32-358
Price: 0.44 USD
Availability: InStock
Rating: 5.00 (1 reviews)

Omnidirectional Electret Condenser Microphone Cartridge for Lavalier 6mm

ECM-B6027AL32-358 microphone circuit diagram and dimensions, showing key components and size

ECM-B6027AL32-358 microphone frequency response chart, showing sensitivity and performance across the frequency range

ECMIC microphones 12,000 m² factory with 6M+ units monthly output and ISO/CE certifications

ECMIC microphones automated production line overview, showing assembly and quality control process

Rated 5.00 out of 5

(1 customer reviews)

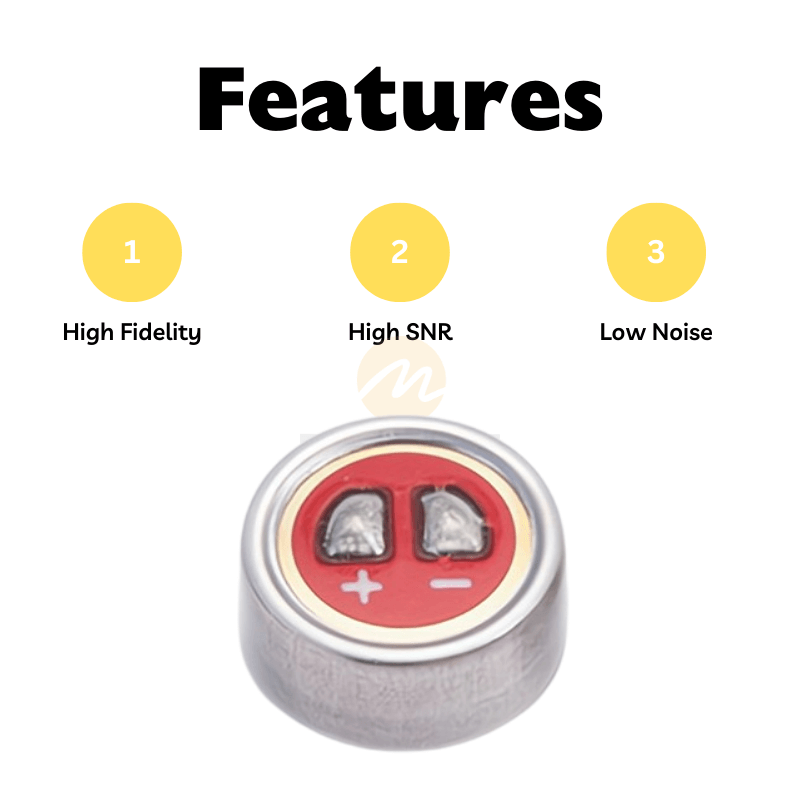

High-fidelity 6mm omnidirectional electret condenser microphone capsule with smooth frequency response and excellent interference resistance, ideal for wireless lavalier microphones and professional audio applications.

Model: ECM-B6027AL32-358
Dimensions: 6 × 2.7 mm
Directivity: Omnidirectional
Sensitivity: -32 dB ± 2
Impedance: 2.2 kΩ
S/N Ratio: 70 dB
Max SPL: 110 dB
Operating Voltage: 2 Vdc
Frequency Response: 50 Hz ~ 20 kHz
Current Consumption: 500 μA

Request Information / Sample

Tell us your project stage. Our engineering team will respond accordingly.

Lead Time

Samples: 1–3 weeks
Mass production: 2–4 weeks

Customization

Application-based engineering support
Structure / sensitivity / acoustic tuning

MOQ

3,000 pcs
Per model / per production batch

Certification

RoHS & UL compliant
Industrial reliability assured

Technical Specifications

The ECM-B6027AL32-358 is a 6mm omnidirectional electret condenser microphone capsule designed for high-fidelity audio capture in professional environments. Featuring a high-quality Panasonic FET transistor and a gold-plated copper ring, this microphone ensures superior signal integrity and minimal distortion. With a smooth, flat frequency response from 20Hz to 16KHz, it delivers accurate and clear sound reproduction, making it perfect for critical audio applications.

The capsule is built with excellent interference resistance, ensuring reliable performance in environments with electromagnetic interference (EMI), making it an ideal choice for wireless lavalier microphones. The microphone’s low self-noise and high sensitivity of -32dB guarantee optimal clarity in various recording and broadcasting setups, even in challenging conditions.

Standard Test Circuit

ECM-B6027AL32 Test Circuit: 2.2kΩ bias, 2V supply, 1μF output

2.2kΩ bias resistor, 2V supply, 1μF output cap. Optimized for full-band audio applications.

Typical Frequency Response

ECM-B6027AL32 Frequency Response: 50Hz-20kHz flat response

50Hz-20kHz flat frequency response with natural roll-off.

Dimensions (Unit: mm)

ECM-B6027AL32 Dimensions: Φ6×2.7mm with front dust mesh

Φ6×2.7mm compact design with front dust mesh (sealed back enclosure).

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.

Sampling Process

Confirm customer requirements:

Review product application, microphone capsule specifications, usage scenarios, and sound quality needs.

Recommend and specify:

Provide recommended microphone capsule models and detailed specifications for customer evaluation.

Sample provision and testing:

Deliver microphone samples for customer testing and feedback purposes.

Optimize and finalize:

Refine microphone design based on feedback, finalize samples, and proceed to mass production upon quality approval.

Quality Assurance

Conducting sampling inspections of incoming materials to ensure compliance with standard requirements.

Performing inspection audits to ensure the stability and control of the entire manufacturing process.

Conducting pre-shipment inspections to ensure that products meet established quality standards.

Acoustic Laboratory

Testing of background noise, sensitivity, frequency response curve, and directionality indicators.

Verification of the impact of different circuits, structural dimensions, materials, and processes on indicators.

Reliability testing at both the new product design stage and the mass production regular stage.

Automatic Workshop

Utilizing fully automated production lines to ensure high efficiency and consistency.

Equipped with state-of-the-art facilities, including a 10,000-level dust-free workshop.

Employing a rigorous 21-step process to guarantee product stability.
