Dynamic Headset Microphones Element 20mm

20mm Dynamic Headset Microphones Element

ECM-DM2025K600 microphone capsule size and frequency response

Durable handheld dynamic microphone element for live vocal performances and public speaking.

Microphone element designed for public address systems, providing robust and clear vocal amplification.

Dynamic microphone capsule integrated into boom headsets, ideal for hands-free communication in sports and call centers.

Rated 5.00 out of 5

(2 customer reviews)

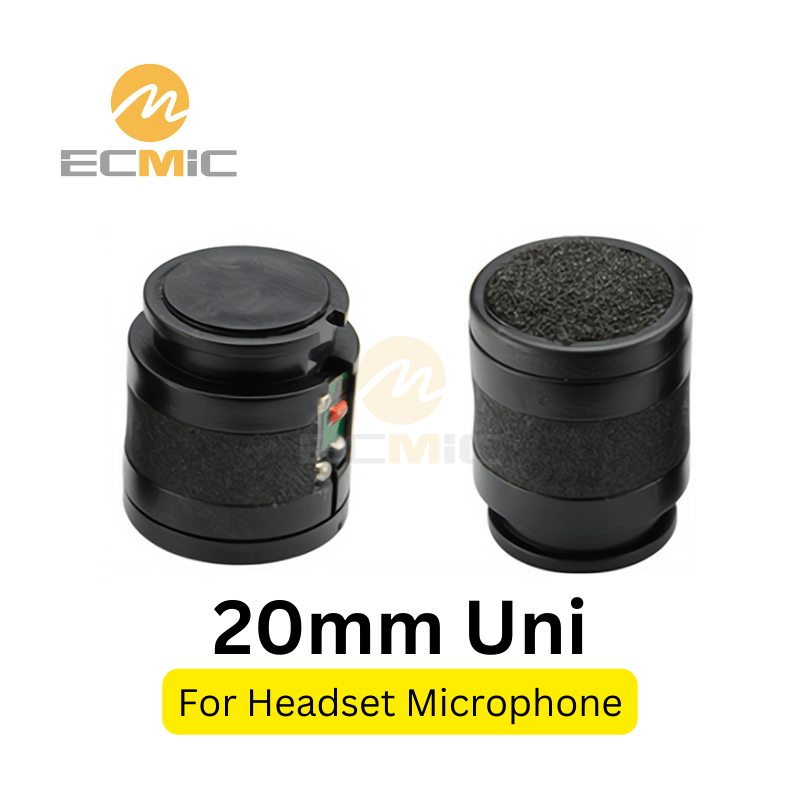

Optimized for headset microphones, PA systems, and KTV handheld mics, this 20.4 × 24.9 mm unidirectional dynamic microphone capsule features a 100Hz to 13kHz frequency response and 600Ω impedance, delivering natural, focused vocal reproduction for communication and entertainment applications.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For intercom & headset makers
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

3,000 pcs (mixed models allowed)

Model: ECM-DM2025K600
Dimensions: 20.4 × 24.9 mm
Directivity: Unidirectional
Sensitivity: -61dB±3
Impedance: 600Ω±15%
S/N Ratio: 60dB
Max SPL: 110dB
Frequency Response: 100Hz~13KHz

Tags: 20mm Dynamic Instrument Mics

Technical Specifications

The ECM-DM2025K600 is a 20mm dynamic microphone capsule designed for voice-forward applications such as communication headsets, PA systems, and handheld microphones. With a frequency response of 100Hz to 13kHz and a unidirectional pickup pattern, it captures vocal tones clearly while minimizing ambient noise.

Its 600Ω impedance ensures wide compatibility with a variety of amplification circuits and audio interfaces, while the compact 20mm form factor enables integration into headsets, intercoms, and other slim-profile voice devices. Built with a durable internal structure, this capsule delivers reliable, distortion-free performance for speech-driven environments.

Exploded View & Parts List

ECM-DM2025K Exploded View: 8-component speaker assembly

Component breakdown: 1.Sponge 2.Cover 3.Diaphragm 4.Coil 5.Magnetic steel 6.Iron pots 7.Holder 8.PCB+Tin

Frequency Response Curve

ECM-DM2025K Frequency Response: Complex curve with multiple peaks and valleys

The frequency response spans from 100Hz to 13kHz, with enhanced lows and a presence boost in the vocal range, followed by a smooth high-end roll-off—designed for natural, focused sound capture.

Dimensions (UNIT: mm)

ECM-DM2025K Dimensions: Φ20.4×24.9mm

Φ20.4×20.9mm cylindrical speaker design.

Reliability Tests

High Temperature Test: Microphone subjected to +60℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Low Temperature Test: Microphone subjected to -25℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Humidity Test: Microphone exposed to 40℃ and 90-95% relative humidity for 96 hours, followed by 6 hours of normal temperature lay.

Temperature Cycle Test: Microphone subjected to rapid temperature changes from normal temperature to +60℃ ±3℃ for 1 hour (normal temperature lay for 3 hours) and then to -25℃ ±3℃ for 1 hour (normal temperature lay for 3 hours).

Sensitivity Stability: Sensitivity remains within ±3dB of the initial sensitivity after each environmental test.

Sampling Process

Confirm customer requirements:

Review product application, microphone capsule specifications, usage scenarios, and sound quality needs.

Recommend and specify:

Provide recommended microphone capsule models and detailed specifications for customer evaluation.

Sample provision and testing:

Deliver microphone samples for customer testing and feedback purposes.

Optimize and finalize:

Refine microphone design based on feedback, finalize samples, and proceed to mass production upon quality approval.

Quality Assurance

Conducting sampling inspections of incoming materials to ensure compliance with standard requirements.

Performing inspection audits to ensure the stability and control of the entire manufacturing process.

Conducting pre-shipment inspections to ensure that products meet established quality standards.

Acoustic Laboratory

Testing of background noise, sensitivity, frequency response curve, and directionality indicators.

Verification of the impact of different circuits, structural dimensions, materials, and processes on indicators.

Reliability testing at both the new product design stage and the mass production regular stage.

Automatic Workshop

Utilizing fully automated production lines to ensure high efficiency and consistency.

Equipped with state-of-the-art facilities, including a 10,000-level dust-free workshop.

Employing a rigorous 21-step process to guarantee product stability.
