Medium Diaphragm Microphone Capsule 16mm

Name: Medium Diaphragm Microphone Capsule 16mm - ECMIC
SKU: ECM-B1668UL46-320
Price: 1.55 USD
Availability: InStock

16mm Medium Diaphragm Microphone Capsule

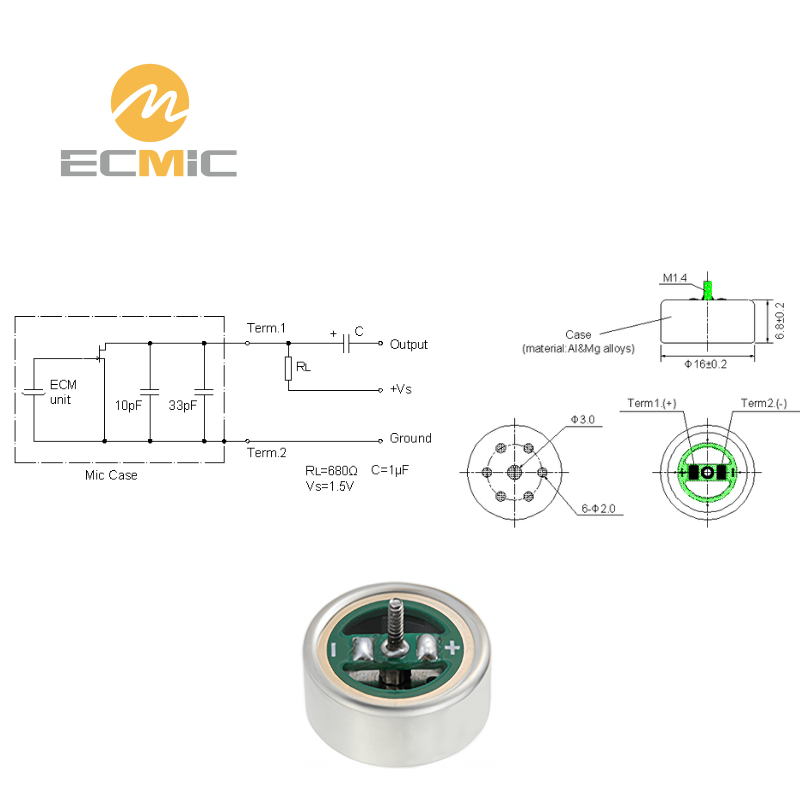

ECM-B1668UL46-320 microphone circuit diagram and dimensions, showing key components and size

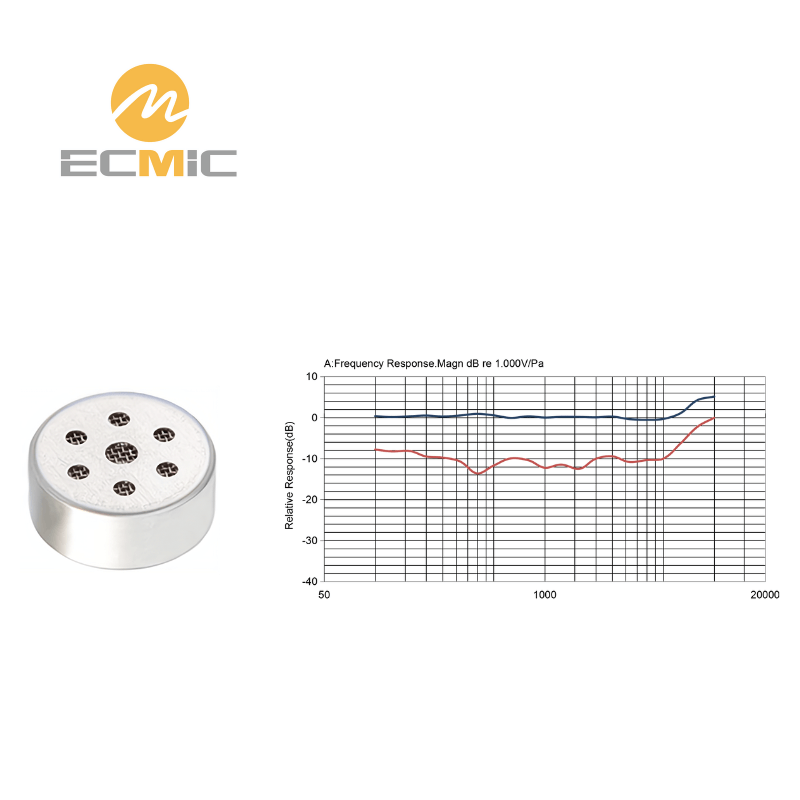

ECM-B1668UL46-320 microphone frequency response chart, showing sensitivity and performance across the frequency range

ECMIC microphones 12,000 m² factory with 6M+ units monthly output and ISO/CE certifications

ECMIC microphones automated production line overview, showing assembly and quality control process

The ECM-B1668UL46-320 is a 16 × 6.8 mm unidirectional microphone capsule measuring. It offers a sensitivity of -46dB±2 and ensures clear audio transmission with a signal-to-noise ratio of 68dB, Ideal for online streaming and live broadcasting.

For audio equipment manufacturers & brands
OEM / ODM production for microphone capsules and acoustic components
Engineering samples and small batch orders supported for validation and testing

Sample

Samples available
Evaluation available

Small Batch

From 200 pcs
Engineering validation

MOQ

5,000 pcs
Standard production

Model: ECM-B1668UL46-320
Dimensions: 16 × 6.8 mm
Directivity: Unidirectional
Sensitivity: -46 dB ± 2
Impedance: 680 Ω
S/N Ratio: 68 dB
Max SPL: 110 dB
Operating Voltage: 1.5 Vdc
Frequency Response: 100 Hz ~ 16 kHz
Current Consumption: 500 μA

Tags: 16mm Electret Solder Tabs Electret Vocal Mics

Technical Specifications

The 1668 single-directional noise-canceling microphone core provides high-quality audio with a wide frequency response, effectively reducing noise and resisting interference.

Standard Test Circuit

Electret microphone test circuit with RL=680Ω

Test conditions: RL=680Ω, VS=1.5V DC, C=1μF

Typical Frequency Response

Wide-range frequency response curve (100Hz-16kHz)

Frequency characteristics: Flat response 100Hz-10kHz, gradual rise from 10kHz-16kHz

Dimensions (UNIT: mm)

16mm microphone with solder tab terminals

Compact design: Ø16mm × 6.8mm height, solder tab connection

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.

Sampling Process

Confirm customer requirements:

Review product application, microphone capsule specifications, usage scenarios, and sound quality needs.

Recommend and specify:

Provide recommended microphone capsule models and detailed specifications for customer evaluation.

Sample provision and testing:

Deliver microphone samples for customer testing and feedback purposes.

Optimize and finalize:

Refine microphone design based on feedback, finalize samples, and proceed to mass production upon quality approval.

Quality Assurance

Conducting sampling inspections of incoming materials to ensure compliance with standard requirements.

Performing inspection audits to ensure the stability and control of the entire manufacturing process.

Conducting pre-shipment inspections to ensure that products meet established quality standards.

Acoustic Laboratory

Testing of background noise, sensitivity, frequency response curve, and directionality indicators.

Verification of the impact of different circuits, structural dimensions, materials, and processes on indicators.

Reliability testing at both the new product design stage and the mass production regular stage.

Automatic Workshop

Utilizing fully automated production lines to ensure high efficiency and consistency.

Equipped with state-of-the-art facilities, including a 10,000-level dust-free workshop.

Employing a rigorous 21-step process to guarantee product stability.
