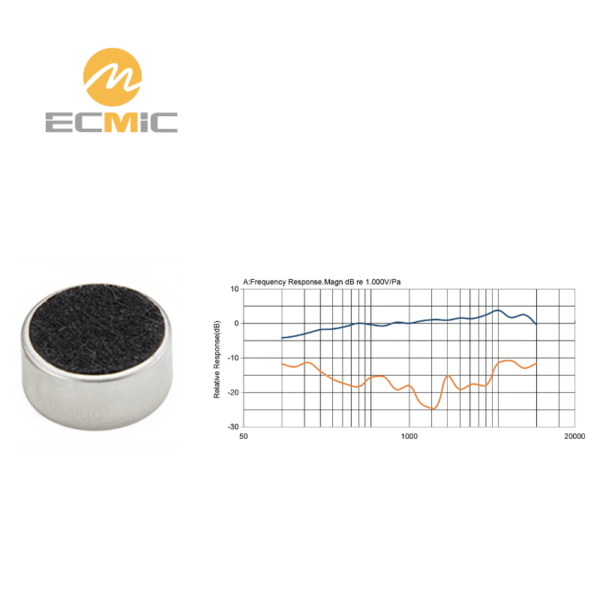

14mm Cardioid Electret Microphone Element for Live Streaming

The ECM-B1463UML38-727 is a 14mm cardioid electret microphone capsule with -38dB sensitivity and 70dB S/N ratio, ideal for live streaming and karaoke microphones. It offers clear, focused sound pickup with low noise for consistent vocal performance.

Model: ECM-B1463UML38-727
Dimensions: 14 × 6.3 mm
Directivity: Unidirectional
Sensitivity: -38 dB ± 2
Impedance: 2 kΩ
S/N Ratio: 70 dB
Max SPL: 110 dB
Operating Voltage: 2 Vdc
Frequency Response: 100 Hz ~ 16 kHz
Current Consumption: 200 μA

Request a Sample

Evaluate our quality in your application. Standard lead time: 1-3 weeks.

Sample

Samples available
Evaluation available

Small Batch

From 200 pcs
Engineering validation

MOQ

5,000 pcs
Standard production

Certified

RoHS & UL
Quality & safety standards

Technical Specifications

Our 1463 unidirectional microphone head features ultra-low self-noise, high fidelity, and low power consumption, making it an ideal high-quality, low-noise mic core.

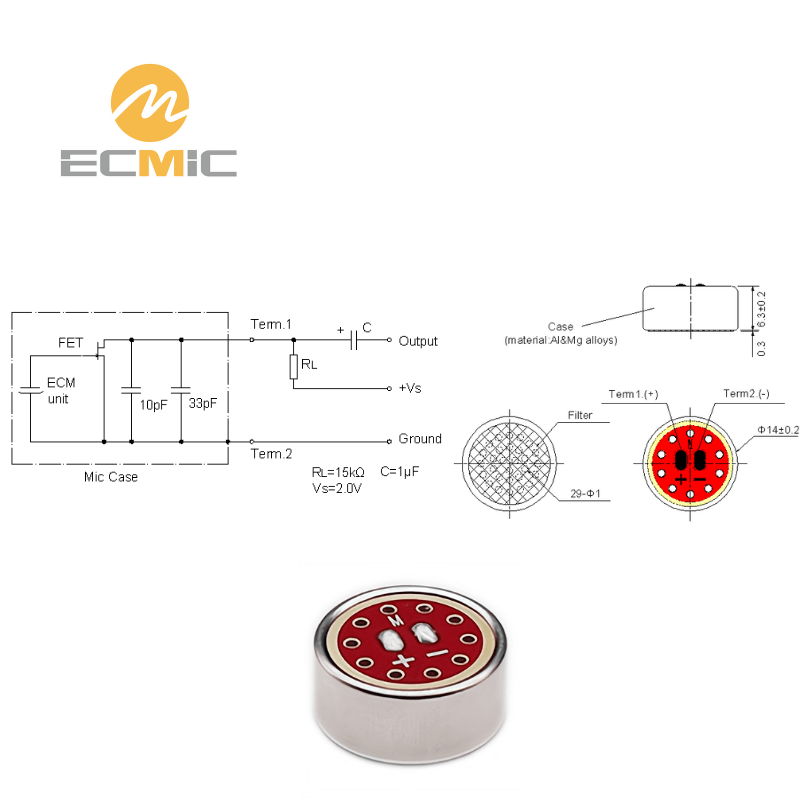

Standard Test Circuit

ECM-B1463UML38-727 Test Circuit: 15kΩ bias, 2V supply, 1μF output capacitor

15kΩ bias resistor, 2V DC supply, 1μF output capacitor.

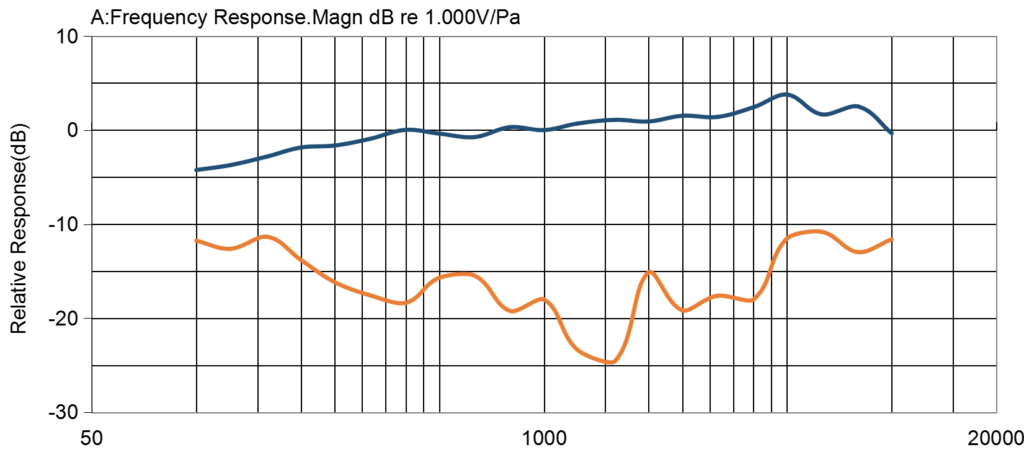

Typical Frequency Response

ECM-B1463UML38-727 Frequency Response: Rising response curve with peak in upper-midrange and gradual roll-off

Rising response curve from the low frequencies, peaking in the upper-midrange, followed by a smooth high-frequency roll-off.

Dimensions (Unit: mm)

ECM-B1463UML38-727 Dimensions: Φ14×6.3mm with front mesh and rear sound port

Φ14×6.3mm housing with front-facing dustproof mesh and rear acoustic port for directional sound capture.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
