6mm Omnidirectional Electret Microphone Insert for Wireless Lavalier

Name: 6mm Omnidirectional Electret Microphone Insert for Wireless Lavalier - ECMIC
SKU: ECM-B6027AL30-715
Price: 0.43 USD
Availability: InStock
Rating: 5.00 (1 reviews)

Omnidirectional Electret Microphone Insert for Wireless Lavalier 6mm

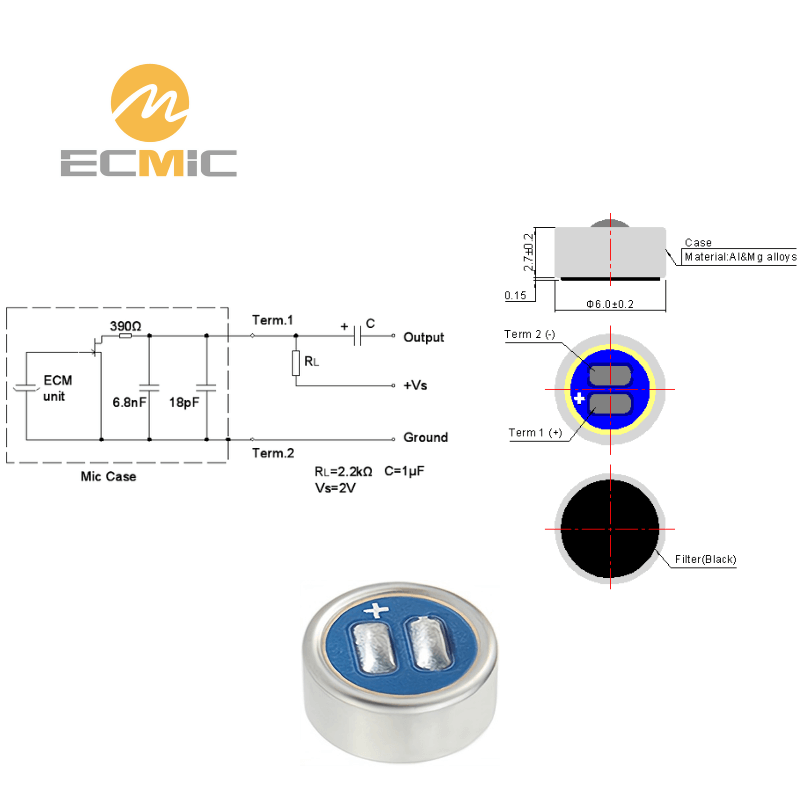

ECM-B6027AL30-715 microphone circuit diagram and dimensions, showing key components and size

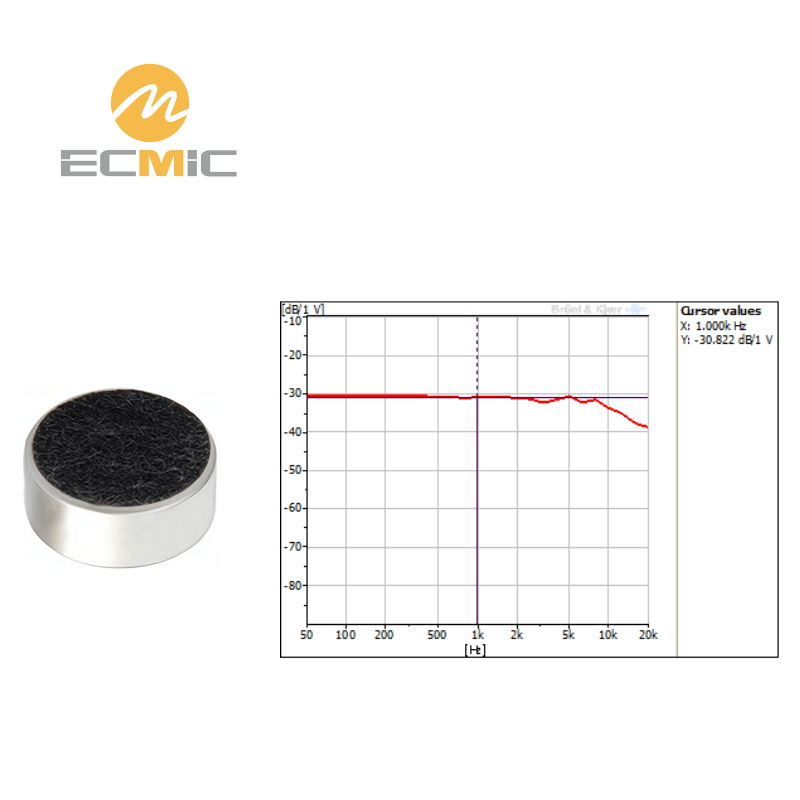

ECM-B6027AL30-715 microphone frequency response chart, showing sensitivity and performance across the frequency range

ECMIC microphones 12,000 m² factory with 6M+ units monthly output and ISO/CE certifications

ECMIC microphones automated production line overview, showing assembly and quality control process

Rated 5.00 out of 5

(1 customer reviews)

The ECM-B6027AL30-715 is a 6 × 2.7 mm omnidirectional microphone capsule designed for lapel microphones. It offers a sensitivity of -30dB±2 and a signal-to-noise ratio of 72dB, ensuring clear sound capture in various scenarios, making it perfect for lapel microphone applications.

Model: ECM-B6027AL30-715
Dimensions: 6 × 2.7 mm
Directivity: Omnidirectional
Sensitivity: -30 dB ± 2
Impedance: 2.2 kΩ
S/N Ratio: 72 dB
Max SPL: 110 dB
Operating Voltage: 2 Vdc
Frequency Response: 50 Hz ~ 10 kHz
Current Consumption: 500 μA

Request a Sample

Evaluate our quality in your application. Standard lead time: 1-3 weeks.

Sample

Samples available
Evaluation available

Small Batch

From 200 pcs
Engineering validation

MOQ

5,000 pcs
Standard production

Certified

RoHS & UL
Quality & safety standards

Technical Specifications

The 6027 omnidirectional microphone head boasts high sensitivity and a high signal-to-noise ratio, featuring an internal dual-capacitor design for superior audio quality.

Standard Test Circuit

ECM-B6027AL30 Test Circuit: 2.2kΩ bias, 2V supply, 1μF output

2.2kΩ bias resistor, 2V supply, 1μF output capacitor. Standard voice-grade configuration.

Typical Frequency Response

ECM-B6027AL30 Frequency Response: Flat with roll-off above 8kHz

Flat frequency response with controlled roll-off above 8kHz.

Dimensions (Unit: mm)

ECM-B6027AL30 Dimensions: Φ6×2.7mm with front dust mesh (non-ported design)

Φ6×2.7mm compact design with front dust mesh (non-ported back).

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.

Sampling Process

Confirm customer requirements:

Review product application, microphone capsule specifications, usage scenarios, and sound quality needs.

Recommend and specify:

Provide recommended microphone capsule models and detailed specifications for customer evaluation.

Sample provision and testing:

Deliver microphone samples for customer testing and feedback purposes.

Optimize and finalize:

Refine microphone design based on feedback, finalize samples, and proceed to mass production upon quality approval.

Quality Assurance

Conducting sampling inspections of incoming materials to ensure compliance with standard requirements.

Performing inspection audits to ensure the stability and control of the entire manufacturing process.

Conducting pre-shipment inspections to ensure that products meet established quality standards.

Acoustic Laboratory

Testing of background noise, sensitivity, frequency response curve, and directionality indicators.

Verification of the impact of different circuits, structural dimensions, materials, and processes on indicators.

Reliability testing at both the new product design stage and the mass production regular stage.

Automatic Workshop

Utilizing fully automated production lines to ensure high efficiency and consistency.

Equipped with state-of-the-art facilities, including a 10,000-level dust-free workshop.

Employing a rigorous 21-step process to guarantee product stability.
