25mm Cardioid Electret Microphone Cartridge

Cardioid Electret Microphone Cartridge 25mm

The ECM-B2583UML32-23861 is a 25 × 8.3 mm unidirectional electret mic capsule with -32dB±2 sensitivity and a 83dB SNR, suitable for professional karaoke microphones, live broadcasting microphones, and studio recording equipment.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
Suitable for brand owners and manufacturers only.
📞 Please contact us to discuss your project and order details.

🧪 Sample

Free sample – shipping extra

🧭 Trial Order

From 500 pcs (1st order only)

📦 MOQ

5,000 pcs (mixed models allowed)

Model: ECM-B2583UML32-23861
Dimensions: 25 × 8.3 mm
Directivity: Unidirectional
Sensitivity: -32dB±2
Impedance: 15KΩ
S/N Ratio: 83dB
Max SPL: 120dB
Operating Voltage: 2Vdc
Frequency Response: 50Hz~20KHz

Tags: 25mm Electret High-SNR Mics Solder Pads Electret Vocal Mics

Technical Specifications

Our 2583 microphone core guarantees high-fidelity audio, boasting a distortion rate of 120dB THD≤1% and an impressive signal-to-noise ratio of 83dB.

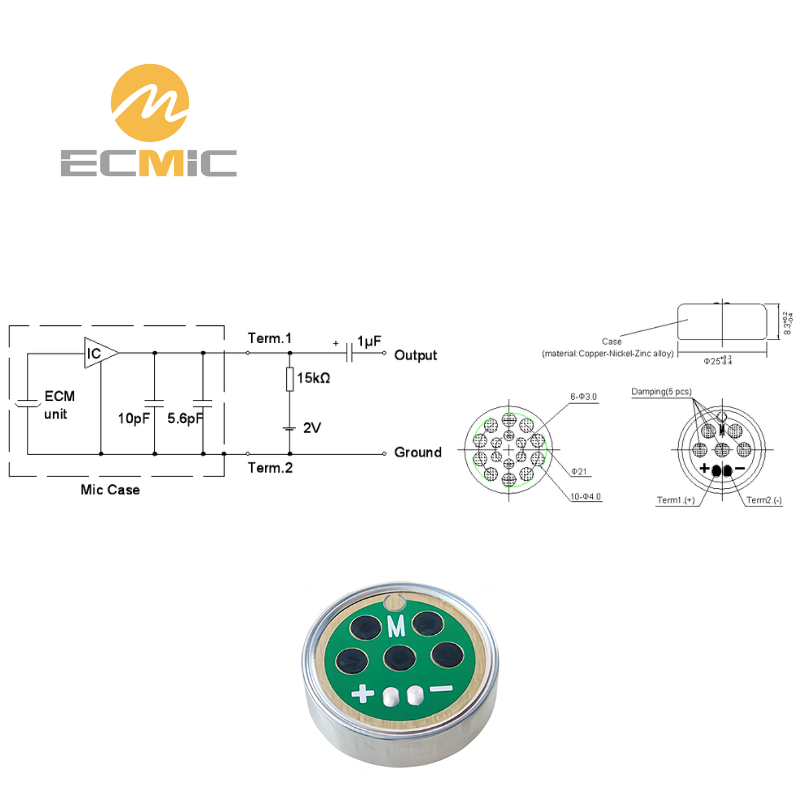

Standard Test Circuit

ECM-B2583UML32-23861 Standard Test Circuit: 15kΩ load, 2V supply, 1μF output

Tested with a 15kΩ load resistor, 2V DC supply, and 1μF coupling capacitor.

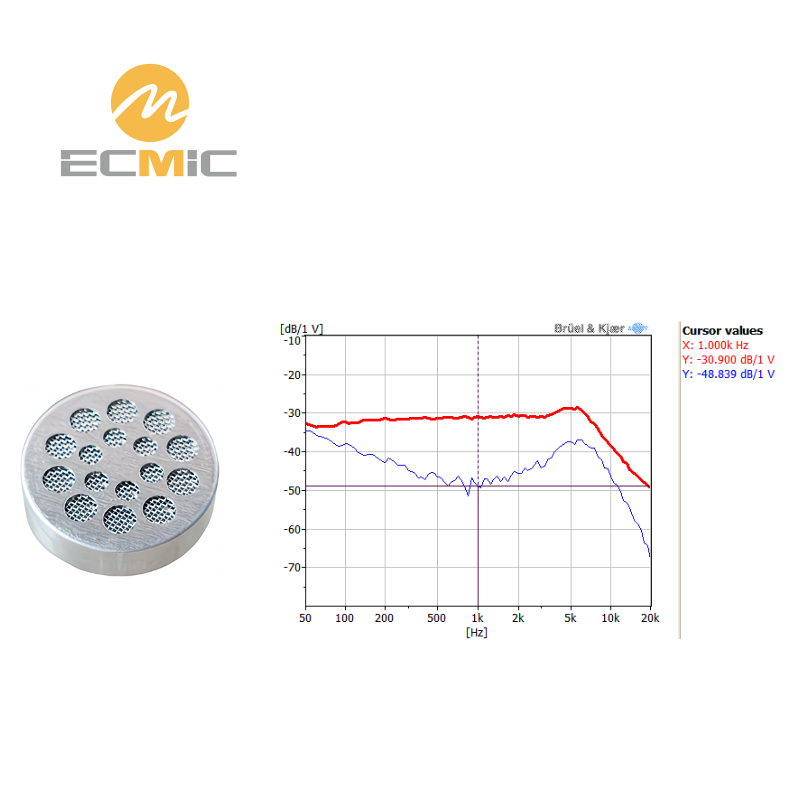

Typical Frequency Response

ECM-B2583UML32-23861 Frequency Response Curve

Frequency response exhibits a noticeable rise from 3kHz to 5kHz, peaking clearly before a sharp drop-off starting around 6kHz, ensuring strong midrange presence with controlled high-frequency roll-off.

Dimensions (UNIT: mm)

Dimensions of ECM-B2583UML32-23861: Φ25×8.3mm

Large capsule measuring Φ25 × 8.3mm, featuring a rear acoustic inlet for enhanced sound pickup.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
