16mm Cardioid Electret Microphone Capsule for Streaming

Cardioid Electret Microphone Capsule for Streaming 16mm

The ECM-B16063UL-SFN-03-Y is a unidirectional microphone capsule with a sensitivity of -45dB±3 and a signal-to-noise ratio of 65dB. It is ideal for live streaming.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For audio brands & OEMs
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

5,000 pcs (mixed models allowed)

Model: ECM-B16063UL-SFN-03-Y
Dimensions: 16 × 6.3 mm
Directivity: Unidirectional
Sensitivity: -45dB±3
Impedance: 2.2KΩ
S/N Ratio: 65dB
Max SPL: 130dB
Operating Voltage: 1.5Vdc
Frequency Response: 100Hz~16KHz

Tags: 16mm Electret 3-Pad Electret Vocal Mics

Technical Specifications

Our 1663 cardioid microphone head, featuring a gold-plated copper ring material and source output, offers high fidelity, a high signal-to-noise ratio, and low noise.

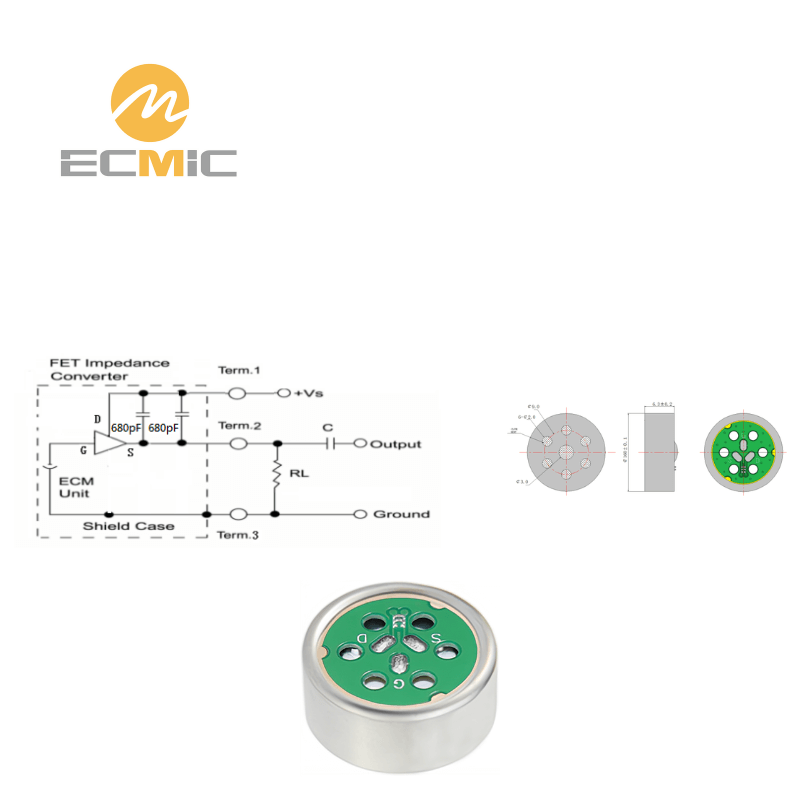

Standard Test Circuit

Test conditions: RL = 2.2KΩ, Vs = 1.5V, C = 1μF

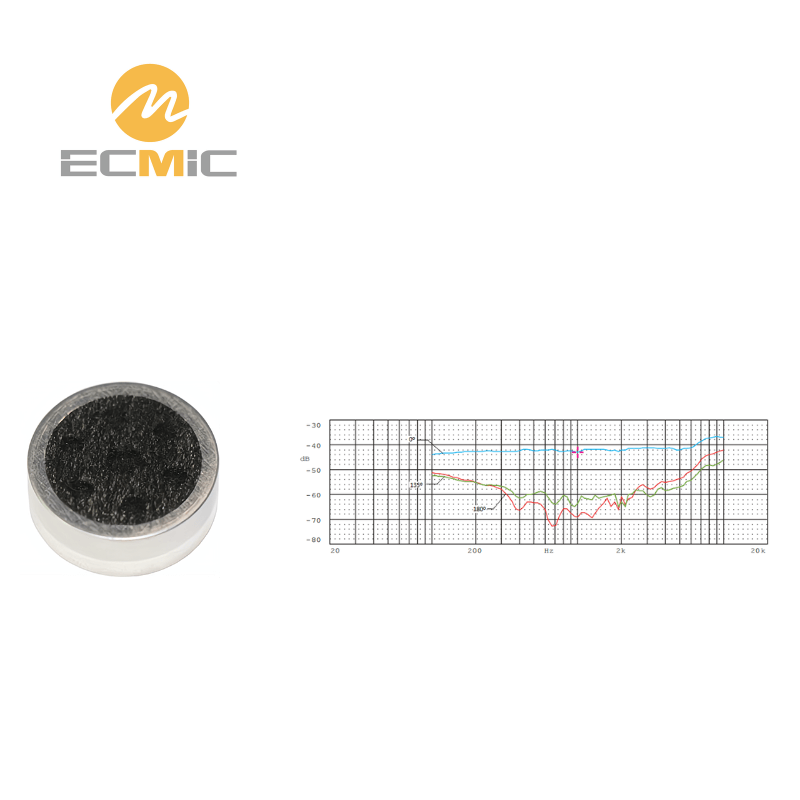

Typical Frequency Response

Frequency increases steadily from 100Hz to 16kHz with modest gain, becoming slightly more pronounced in the high-frequency range.

Dimensions (UNIT: mm)

Appearance Dimension

Capsule measures 16mm in diameter and 6.3mm in height, featuring a front dust mesh and a rear acoustic port.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
