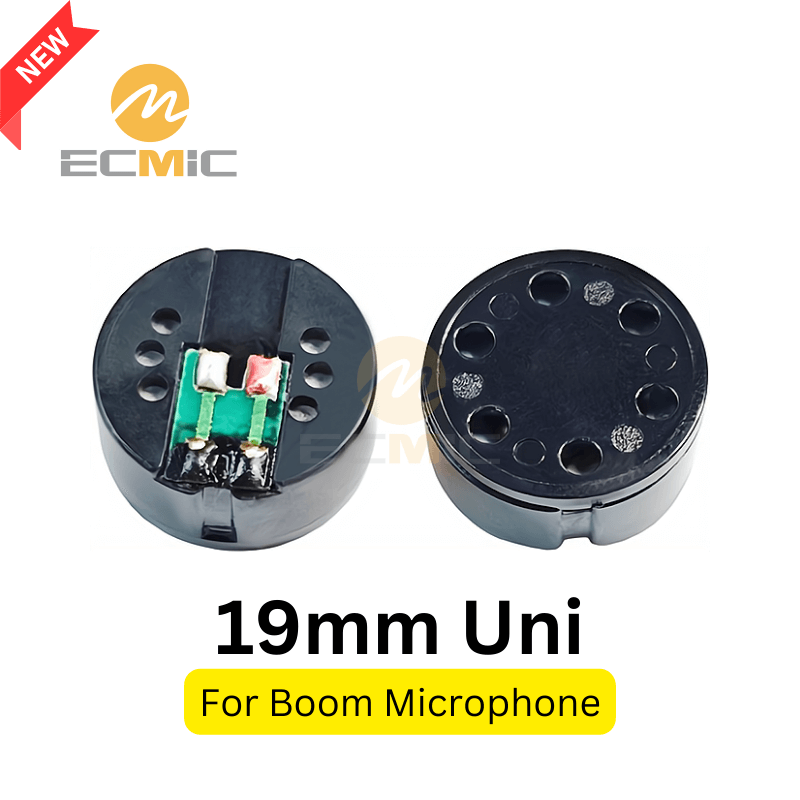

19mm Supercardioid Dynamic Capsule for Boom Microphone

Supercardioid Dynamic Capsule for Boom Microphone 19mm

ECM-DM1910B-1502 microphone capsule size and frequency response

Durable handheld dynamic microphone element for live vocal performances and public speaking.

Dynamic microphone capsule integrated into boom headsets, ideal for hands-free communication in sports and call centers.

Microphone element designed for public address systems, providing robust and clear vocal amplification.

Rated 5.00 out of 5

(1 customer reviews)

Supercardioid 19mm dynamic microphone capsule optimized for boom microphones, headsets, and public address systems. Features a tailored 100Hz–10kHz frequency response for clear, focused vocal capture with strong background noise rejection.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For intercom & headset makers
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

3,000 pcs (mixed models allowed)

Model: ECM-DM1910B-1502
Dimensions: 19 × 9.6 mm
Directivity: Unidirectional
Sensitivity: -58dB±3
Impedance: 600Ω±15%
Frequency Response: 100Hz~10KHz

Tags: 19mm Dynamic Vocal Mics

Technical Specifications

The ECM-DM1910B-1502 dynamic microphone capsule is engineered for high-clarity voice capture in demanding audio environments. Its supercardioid directivity enhances front-facing pickup while minimizing ambient noise and feedback—ideal for boom microphone arms, sports headsets, and intercom use.

With a frequency response from 100Hz to 10kHz and 600Ω output impedance, this capsule is optimized for intelligibility and vocal presence. Its compact 19 × 9.6 mm form factor enables easy integration into slim-profile enclosures without compromising performance.

Durable and consistent in performance, the ECM-DM1910B-1502 is well-suited for integration into handheld vocal microphones, headset boom mics, and public address devices—making it a versatile choice for manufacturers seeking rugged, speech-focused dynamic elements.

Exploded View & Parts List

Dynamic Part

Parts List: Sponge, Cover, Diaphragm, Coil, Magnetic Steel, Iron Pot, Holder, PCB + Tin.

Frequency Response Curve

Response Curve

Frequency Response: 100Hz–10kHz, tailored to highlight clear vocal reproduction in the main speech range.

Dimensions (UNIT: mm)

Appearance Size

Dimensions: Diameter: 19mm; Height: 9.6mm.

Reliability Tests

High Temperature Test: Microphone subjected to +60℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Low Temperature Test: Microphone subjected to -25℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Humidity Test: Microphone exposed to 40℃ and 90-95% relative humidity for 96 hours, followed by 6 hours of normal temperature lay.

Temperature Cycle Test: Microphone subjected to rapid temperature changes from normal temperature to +60℃ ±3℃ for 1 hour (normal temperature lay for 3 hours) and then to -25℃ ±3℃ for 1 hour (normal temperature lay for 3 hours).

Sensitivity Stability: Sensitivity remains within ±3dB of the initial sensitivity after each environmental test.

Sampling Process

Confirm customer requirements:

Review product application, microphone capsule specifications, usage scenarios, and sound quality needs.

Recommend and specify:

Provide recommended microphone capsule models and detailed specifications for customer evaluation.

Sample provision and testing:

Deliver microphone samples for customer testing and feedback purposes.

Optimize and finalize:

Refine microphone design based on feedback, finalize samples, and proceed to mass production upon quality approval.

Quality Assurance

Conducting sampling inspections of incoming materials to ensure compliance with standard requirements.

Performing inspection audits to ensure the stability and control of the entire manufacturing process.

Conducting pre-shipment inspections to ensure that products meet established quality standards.

Acoustic Laboratory

Testing of background noise, sensitivity, frequency response curve, and directionality indicators.

Verification of the impact of different circuits, structural dimensions, materials, and processes on indicators.

Reliability testing at both the new product design stage and the mass production regular stage.

Automatic Workshop

Utilizing fully automated production lines to ensure high efficiency and consistency.

Equipped with state-of-the-art facilities, including a 10,000-level dust-free workshop.

Employing a rigorous 21-step process to guarantee product stability.
