6mm Bidirectional Microphone Element for Headset Mics

Bidirectional Microphone Element for Headset Mics 6mm

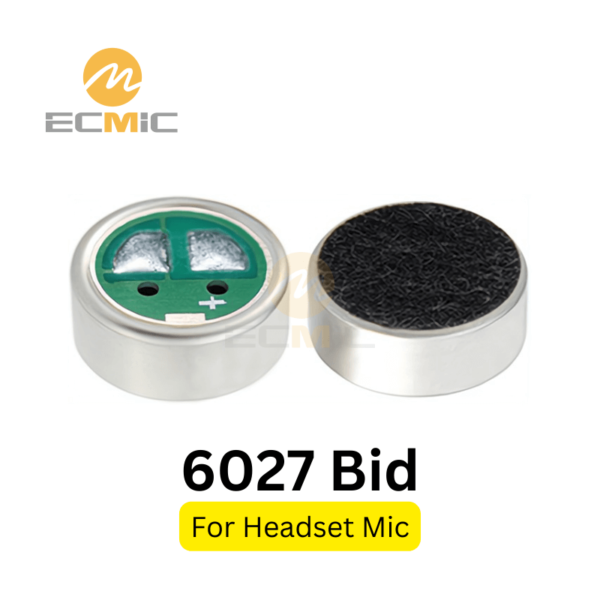

The ECM-B6027NL50-Y504-223 is a 6 × 2.7 mm bidirectional microphone capsule, designed for use in headset mics. It features a sensitivity of -50dB±2 and a signal-to-noise ratio of 55dB, ensuring reliable audio performance. This capsule is ideal for capturing focused sound in intercom applications.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For audio brands & OEMs
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

5,000 pcs (mixed models allowed)

Model: ECM-B6027NL50-Y504-223
Dimensions: 6 × 2.7 mm
Directivity: Bidirectional
Sensitivity: -50dB±2
Impedance: 2.2KΩ
S/N Ratio: 55dB
Max SPL: 110dB
Operating Voltage: 3Vdc
Frequency Response: 100Hz~10KHz

Tags: 6mm Electret Intercom Mics Solder Pads Electret

Technical Specifications

Our 6027 microphone head features low background noise and effective interference resistance.

Standard Test Circuit

Test conditions: RL = 2.2kΩ, Vs = 2V, C = 1μF

Typical Frequency Response

The frequency response ranges from 100Hz to 12kHz. It remains flat from 100Hz to around 1.5kHz, then gradually rises, reaching a peak near 8kHz before beginning to decline at higher frequencies.

Dimensions (UNIT: mm)

Appearance Dimension

Capsule measures 6mm in diameter and 2.7mm in height. The front features a dustproof mesh, while the rear includes an acoustic port for sound entry.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
