6mm Omnidirectional Electret Microphone Head for Lavalier Mic

Omnidirectional Electret Microphone Head for Lavalier Mic 6mm

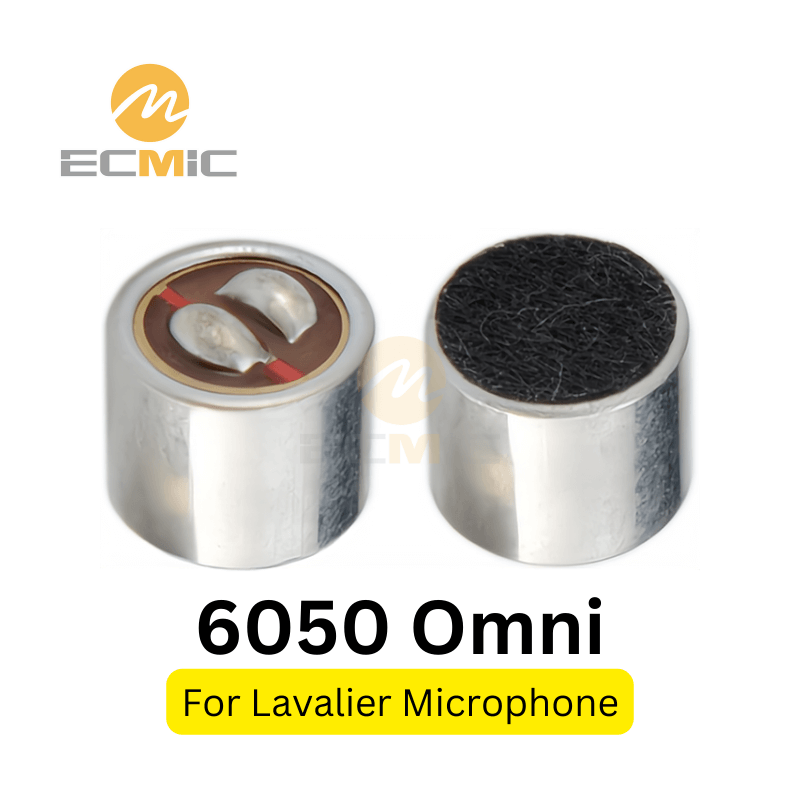

The ECM-F6050AL41-SD210 is a 6 × 5 mm omnidirectional microphone capsule, ideal for lavalier microphones. It offers a sensitivity of -41dB±2 and a signal-to-noise ratio of 58dB, ensuring clear and reliable audio capture across a wide frequency range.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For audio brands & OEMs
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

5,000 pcs (mixed models allowed)

Model: ECM-F6050AL41-SD210
Dimensions: 6 × 5 mm
Directivity: Omnidirectional
Sensitivity: -41dB±2
Impedance: 2.2KΩ
S/N Ratio: 58dB
Max SPL: 110dB
Operating Voltage: 3Vdc
Frequency Response: 50Hz~20KHz

Tags: 6mm Electret Conference Mics Solder Pads Electret

Technical Specifications

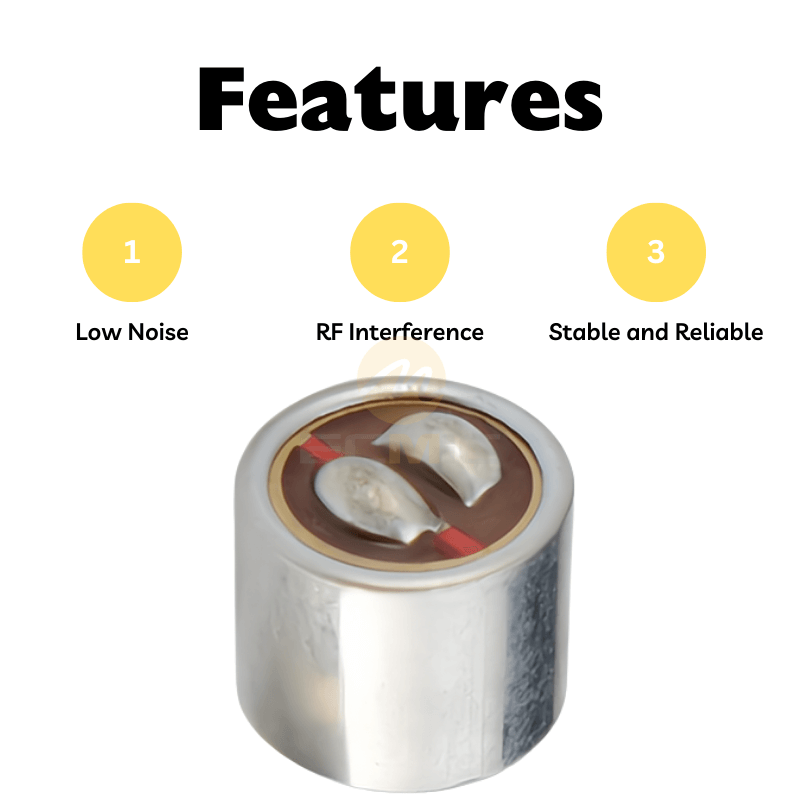

Our 6050 omnidirectional electret microphone capsule features dual capacitors for strong interference shielding. Made from eco-friendly materials and ROHS certified, it ensures reliable performance.

Standard Test Circuit

Test setup uses RL = 2.2KΩ, VS = 3V, and C = 1μF for measurement.

Typical Frequency Response

Frequency response remains steady from 50Hz to 3kHz, rises steadily to 10kHz, then gradually falls toward 20kHz.

Dimensions (UNIT: mm)

Appearance Dimension

Microphone capsule measures 6mm in diameter and 5mm in height, with a front dust mesh and a sealed back (no acoustic port).

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.

Sampling Process

Confirm customer requirements:

Review product application, microphone capsule specifications, usage scenarios, and sound quality needs.

Recommend and specify:

Provide recommended microphone capsule models and detailed specifications for customer evaluation.

Sample provision and testing:

Deliver microphone samples for customer testing and feedback purposes.

Optimize and finalize:

Refine microphone design based on feedback, finalize samples, and proceed to mass production upon quality approval.

Quality Assurance

Conducting sampling inspections of incoming materials to ensure compliance with standard requirements.

Performing inspection audits to ensure the stability and control of the entire manufacturing process.

Conducting pre-shipment inspections to ensure that products meet established quality standards.

Acoustic Laboratory

Testing of background noise, sensitivity, frequency response curve, and directionality indicators.

Verification of the impact of different circuits, structural dimensions, materials, and processes on indicators.

Reliability testing at both the new product design stage and the mass production regular stage.

Automatic Workshop

Utilizing fully automated production lines to ensure high efficiency and consistency.

Equipped with state-of-the-art facilities, including a 10,000-level dust-free workshop.

Employing a rigorous 21-step process to guarantee product stability.
