Dirt Bike Helmet Microphone Capsule

The ECM-B6027UL-50 is a 6 × 2.7 mm unidirectional microphone capsule designed for dirt bike helmets, cycling helmets, and outdoor helmet applications. With -50dB ±2 sensitivity and 60dB SNR, it ensures clear sound capture even in outdoor environments.

Model: ECM-B6027UL-50
Dimensions: 6 × 2.7 mm
Directivity: Unidirectional
Sensitivity: -50 dB ± 2
Impedance: 680 Ω
S/N Ratio: 60 dB
Max SPL: 110 dB
Operating Voltage: 1.5 Vdc
Frequency Response: 100 Hz ~ 16 kHz
Current Consumption: 450 μA

Request Information / Sample

Tell us your project stage. Our engineering team will respond accordingly.

Lead Time

Samples: 1–3 weeks
Mass production: 2–4 weeks

Customization

Application-based engineering support
Structure / sensitivity / acoustic tuning

MOQ

3,000 pcs
Per model / per production batch

Certification

RoHS & UL compliant
Industrial reliability assured

Technical Specifications

Our professionally manufactured 6027 unidirectional helmet microphone head is designed for dirt bike helmets, cycling helmets, and outdoor helmet communication. It effectively shields against RF interference and features a Korean RF JFET for stable quality.

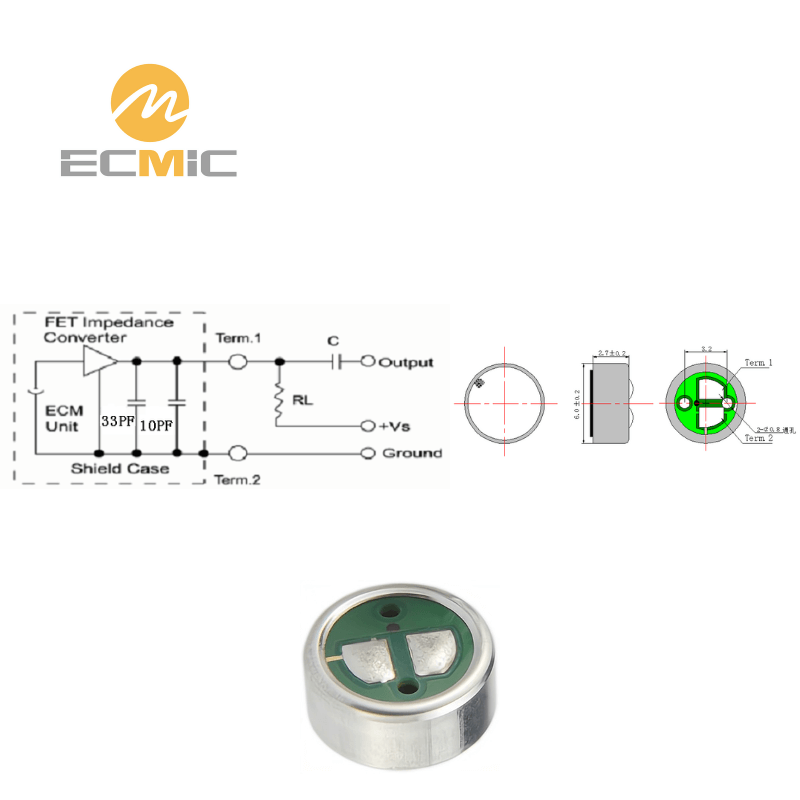

Standard Test Circuit

Test conditions: RL = 680Ω, Vs = 1.5V, C = 1μF

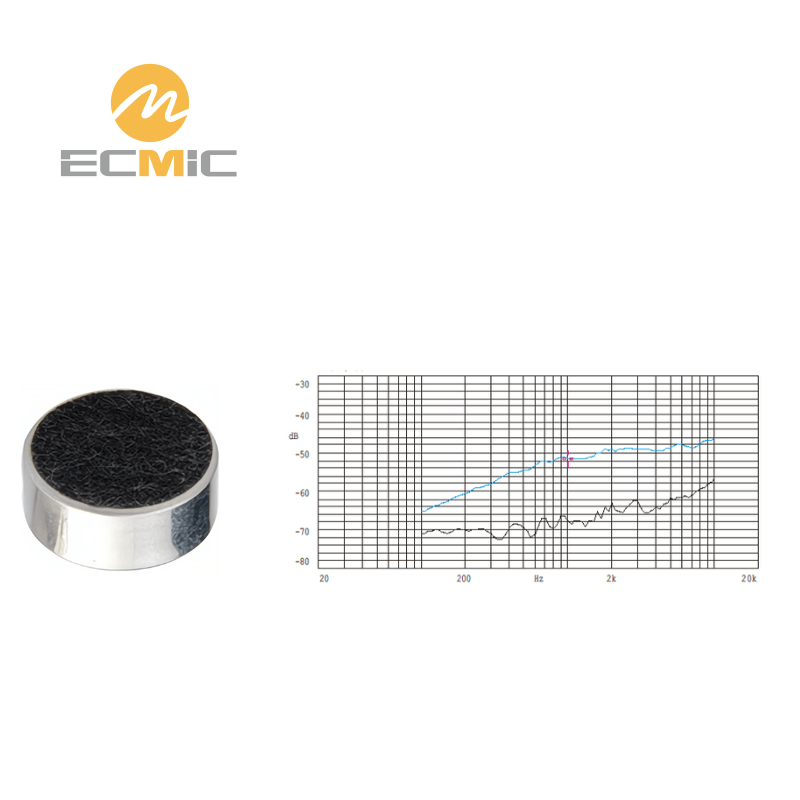

Typical Frequency Response

The frequency response spans from 100Hz to 16kHz, featuring a consistent upward trend that enhances clarity across the full spectrum.

Dimensions (UNIT: mm)

Appearance Dimension

Capsule measures 6mm in diameter and 2.7mm in height. The front side is protected by a dustproof mesh, while the rear includes an acoustic port for sound pickup.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
