Dynamic Conference Headset Microphone Transducer 15mm

15mm Dynamic Conference Headset Microphone Transducer

ECM-DM1508K600 microphone capsule size and frequency response

Durable handheld dynamic microphone element for live vocal performances and public speaking.

Microphone element optimized for classroom amplifier systems to project clear speech in teaching environments.

Flexible gooseneck dynamic microphone capsule designed for intercom systems in industrial and security applications.

Optimized for headset microphones, communication terminals, classroom amplification systems, and handheld dynamic microphones, this compact 15 × 8 mm unidirectional dynamic microphone capsule features a 100Hz–9kHz frequency range and 600Ω impedance for clear, voice-focused pickup.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For intercom & headset makers
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

3,000 pcs (mixed models allowed)

Model: ECM-DM1508K600
Dimensions: 15 × 8 mm
Directivity: Unidirectional
Sensitivity: -60dB±3
Impedance: 600Ω±15%
Frequency Response: 100Hz~9000Hz

Tags: 15mm Dynamic Conference Mics

Technical Specifications

Engineered for compact, voice-driven devices, the ECM-DM1508K600 is a 15mm dynamic microphone capsule ideal for headset microphones, conference systems, intercom equipment, and handheld microphone assemblies.

Its tailored frequency response from 100Hz to 9kHz captures the vocal range with clarity while gently rolling off high frequencies to reduce noise and sibilance. The 600Ω impedance ensures stable performance across most voice amplifier circuits.

With a durable build and compact form factor, this capsule is well-suited for headset booms, gooseneck mics, handheld microphones, and voice pickup modules used in education, communication, and public address systems.

Exploded View & Parts List

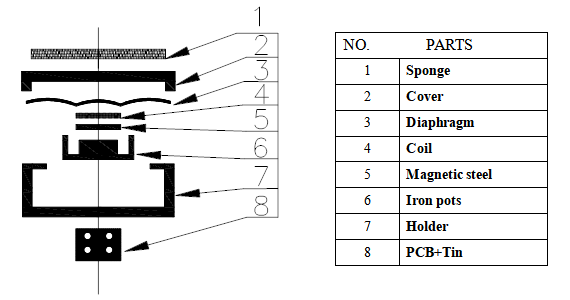

ECM-DM1508K Exploded View: 8-component assembly

Component breakdown: 1.Sponge 2.Cover 3.Diaphragm 4.Coil 5.Magnetic steel 6.Iron pots 7.Holder 8.PCB+Tin

Frequency Response Curve

ECM-DM1508K Frequency Response: 100Hz-8kHz rise, then attenuation to 20kHz

Covers 100Hz–9kHz, delivering rich lows and natural mids with gentle high-end roll-off—suited for vocal-focused applications.

Dimensions (UNIT: mm)

ECM-DM1508K Dimensions: Φ15×8mm

Compact Φ15×8mm housing.

Reliability Tests

High Temperature Test: Microphone subjected to +60℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Low Temperature Test: Microphone subjected to -25℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Humidity Test: Microphone exposed to 40℃ and 90-95% relative humidity for 96 hours, followed by 6 hours of normal temperature lay.

Temperature Cycle Test: Microphone subjected to rapid temperature changes from normal temperature to +60℃ ±3℃ for 1 hour (normal temperature lay for 3 hours) and then to -25℃ ±3℃ for 1 hour (normal temperature lay for 3 hours).

Sensitivity Stability: Sensitivity remains within ±3dB of the initial sensitivity after each environmental test.
