30mm Dynamic Microphone Capsule for Audio Interfaces

Dynamic Microphone Capsule for Audio Interfaces 30mm

ECM-DM27BK600 microphone capsule size and frequency response

Professional dynamic microphone element optimized for studio recording with clear vocal and instrument capture.

Dynamic microphone designed for use with audio interfaces, ideal for recording vocals and instruments with clear sound quality and noise rejection.

High-quality dynamic microphone capsule for broadcast studios, delivering rich tone and directional sound control.

A 30 × 49 mm unidirectional dynamic microphone capsule optimized for rich, natural sound capture in professional audio interfaces, studio recording, and KTV handheld microphones. Featuring a wide frequency response of 50Hz to 15kHz and stable 600Ω impedance, it ensures precise and noise-resistant audio performance.

Model: ECM-DM27BK600
Dimensions: 30 × 49 mm
Weight: 37 g
Directivity: Unidirectional
Sensitivity: -52 dB ± 3
Impedance: 600 Ω ± 30%
S/N Ratio: 75 dB
Max SPL: 110 dB
Frequency Response: 50 Hz ~ 15 kHz

Request a Sample

Evaluate our quality in your application. Standard lead time: 1-3 weeks.

Sample

Samples available
Evaluation available

Small Batch

From 200 pcs
Engineering validation

MOQ

3,000 pcs
Standard production

Certified

RoHS & UL
Quality & safety standards

Technical Specifications

Our 30mm dynamic microphone capsule delivers rich, full sound with high fidelity and minimal distortion, emphasizing a wide frequency response essential for clear vocal and instrument reproduction.

With a stable 600Ω impedance and robust construction, this capsule offers broad compatibility with audio interfaces and recording equipment, ensuring precise and noise-resistant sound capture.

Designed primarily for professional studio recording and broadcast environments, it also excels in handheld KTV microphones and live streaming sound card applications, providing consistent, high-quality audio performance across varied scenarios.

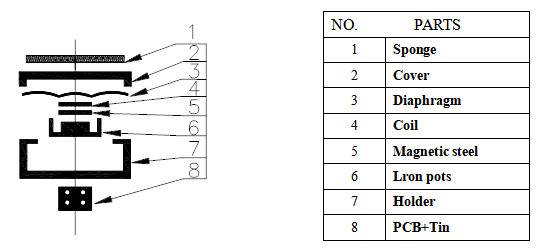

Exploded View & Parts List

Dynamic Part

Parts List: Sponge, Cover, Diaphragm, Coil, Magnetic steel, Iron pots, Holder, PCB + Tin.

Frequency Response Curve

Response Curve

Frequency Response: 50Hz–15kHz, covering a wide audio spectrum suitable for versatile dynamic microphone applications.

Dimensions (UNIT: mm)

Appearance Size

Diameter: 30mm; Height: 49mm.

Reliability Tests

High Temperature Test: Microphone subjected to +60℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Low Temperature Test: Microphone subjected to -25℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Humidity Test: Microphone exposed to 40℃ and 90-95% relative humidity for 96 hours, followed by 6 hours of normal temperature lay.

Temperature Cycle Test: Microphone subjected to rapid temperature changes from normal temperature to +60℃ ±3℃ for 1 hour (normal temperature lay for 3 hours) and then to -25℃ ±3℃ for 1 hour (normal temperature lay for 3 hours).

Sensitivity Stability: Sensitivity remains within ±3dB of the initial sensitivity after each environmental test.

Sampling Process

Confirm customer requirements:

Review product application, microphone capsule specifications, usage scenarios, and sound quality needs.

Recommend and specify:

Provide recommended microphone capsule models and detailed specifications for customer evaluation.

Sample provision and testing:

Deliver microphone samples for customer testing and feedback purposes.

Optimize and finalize:

Refine microphone design based on feedback, finalize samples, and proceed to mass production upon quality approval.

Quality Assurance

Conducting sampling inspections of incoming materials to ensure compliance with standard requirements.

Performing inspection audits to ensure the stability and control of the entire manufacturing process.

Conducting pre-shipment inspections to ensure that products meet established quality standards.

Acoustic Laboratory

Testing of background noise, sensitivity, frequency response curve, and directionality indicators.

Verification of the impact of different circuits, structural dimensions, materials, and processes on indicators.

Reliability testing at both the new product design stage and the mass production regular stage.

Automatic Workshop

Utilizing fully automated production lines to ensure high efficiency and consistency.

Equipped with state-of-the-art facilities, including a 10,000-level dust-free workshop.

Employing a rigorous 21-step process to guarantee product stability.
