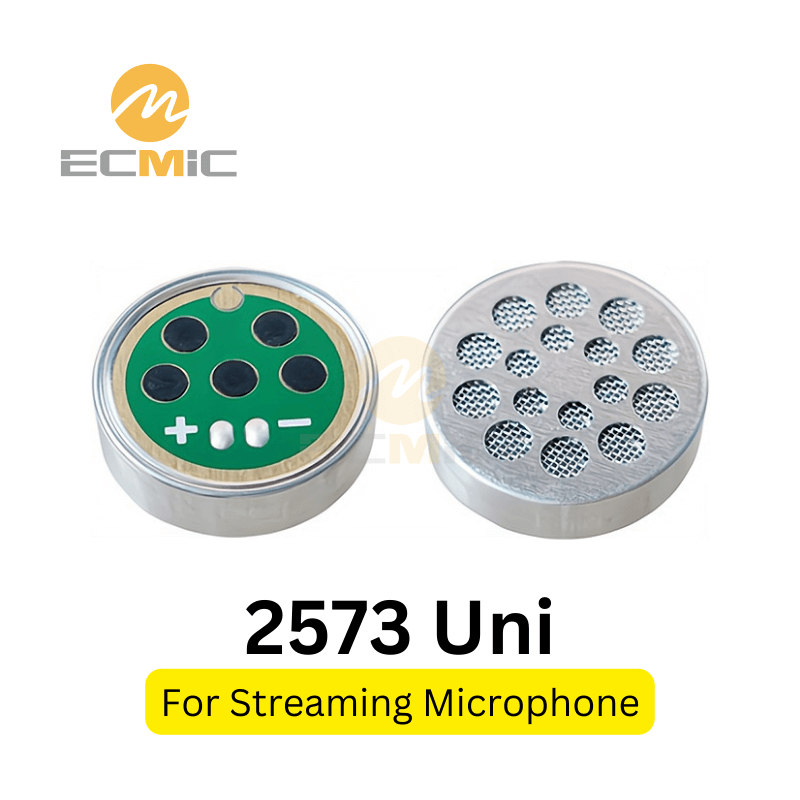

Live Broadcast Microphone Capsule 25mm

The ECM-B2573UL33-23221 is a 25 × 7.3 mm unidirectional microphone capsule primarily used in broadcasting microphones, live streaming, and professional recording microphones. With a sensitivity of -33dB±2 and a signal-to-noise ratio of 77dB, it provides clear and reliable sound capture for high-quality audio applications.

Model: ECM-B2573UL33-23221
Dimensions: 25 × 7.3 mm
Directivity: Unidirectional
Sensitivity: -33 dB ± 2
Impedance: 2.2 kΩ
S/N Ratio: 77 dB
Max SPL: 110 dB
Operating Voltage: 2 Vdc
Frequency Response: 50 Hz ~ 10 kHz
Current Consumption: 500 μA

Request a Sample

Evaluate our quality in your application. Standard lead time: 1-3 weeks.

Sample

Samples available
Evaluation available

Small Batch

From 200 pcs
Engineering validation

MOQ

5,000 pcs
Standard production

Certified

RoHS & UL
Quality & safety standards

Technical Specifications

Our 2573 unidirectional large-diaphragm electret condenser microphone head features a high signal-to-noise ratio and low noise. It offers high fidelity, strong directionality, and excellent anti-interference capabilities, ensuring superior audio quality and performance.

Standard Test Circuit

Standard test setup with a 2.2kΩ bias resistor, 2V DC supply, and 1μF output capacitor.

Typical Frequency Response

The frequency response covers 50Hz to 16kHz, starting with a slight decline from 50Hz to 80Hz, followed by a minor rise and gentle fluctuations up to 5kHz. The response peaks near 8kHz before gradually decreasing.

Dimensions (UNIT: mm)

Appearance Dimension

Compact Φ25 × 7.3mm capsule with rear acoustic port for enhanced sound pickup.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
