10mm Omnidirectional Electret Condenser Microphone Capsule for Vocal Recording

Omnidirectional Electret Condenser Microphone Capsule for Vocal Recording 10mm

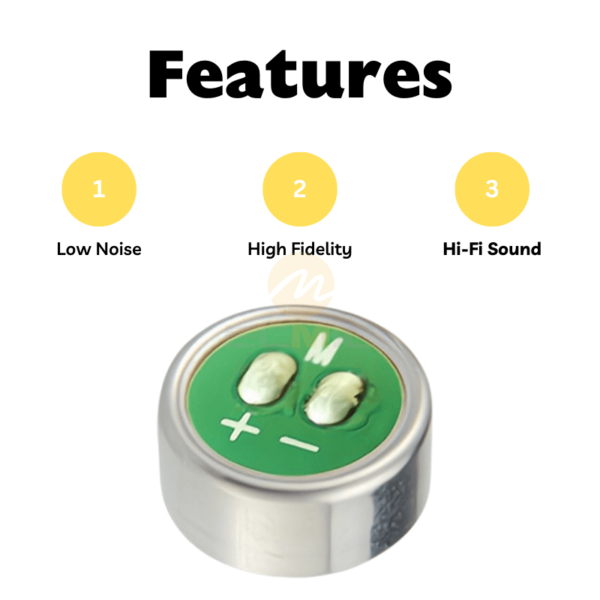

The ECM-B1045AML36-061 is a 10 × 4.5 mm omnidirectional microphone capsule designed for studio recording setups and vocal recording environments, featuring a sensitivity of -36dB±2 and a signal-to-noise ratio of 76dB.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
Suitable for brand owners and manufacturers only.
📞 Please contact us to discuss your project and order details.

🧪 Sample

Free sample – shipping extra

🧭 Trial Order

From 500 pcs (1st order only)

📦 MOQ

5,000 pcs (mixed models allowed)

Model: ECM-B1045AML36-061
Dimensions: 10 × 4.5 mm
Directivity: Omnidirectional
Sensitivity: -36dB±2
Impedance: 15KΩ
S/N Ratio: 76dB
Max SPL: 120dB
Operating Voltage: 2Vdc
Frequency Response: 50Hz~16KHz

Tags: 10mm Electret Solder Pads Electret Vocal Mics

Technical Specifications

With a distortion rate of ≤1% and a signal-to-noise ratio of 76dB, our 1045 studio microphone head offers low noise and high fidelity, making it perfect for studio recordings.

Standard Test Circuit

ECM-B1045AML36 Test Circuit: 15kΩ bias, 2V supply, 1μF output

15kΩ bias resistor, 2V DC supply, 1μF output capacitor. High-impedance microphone configuration.

Typical Frequency Response

ECM-B1045AML36 Frequency Response

Mid-range dip (4-5kHz) followed by presence rise (5-8kHz) and high-end roll-off.

Dimensions (Unit: mm)

ECM-B1045AML36 Dimensions: Φ10×4.5mm sealed design

Compact Φ10×4.5mm housing with front dust mesh (non-ported back).

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.

Sampling Process

Confirm customer requirements:

Review product application, microphone capsule specifications, usage scenarios, and sound quality needs.

Recommend and specify:

Provide recommended microphone capsule models and detailed specifications for customer evaluation.

Sample provision and testing:

Deliver microphone samples for customer testing and feedback purposes.

Optimize and finalize:

Refine microphone design based on feedback, finalize samples, and proceed to mass production upon quality approval.

Quality Assurance

Conducting sampling inspections of incoming materials to ensure compliance with standard requirements.

Performing inspection audits to ensure the stability and control of the entire manufacturing process.

Conducting pre-shipment inspections to ensure that products meet established quality standards.

Acoustic Laboratory

Testing of background noise, sensitivity, frequency response curve, and directionality indicators.

Verification of the impact of different circuits, structural dimensions, materials, and processes on indicators.

Reliability testing at both the new product design stage and the mass production regular stage.

Automatic Workshop

Utilizing fully automated production lines to ensure high efficiency and consistency.

Equipped with state-of-the-art facilities, including a 10,000-level dust-free workshop.

Employing a rigorous 21-step process to guarantee product stability.
