9.7mm Long Distance Microphone Pickup with Leads

Compact 9.7mm omnidirectional microphone capsule with 15mm leads for small-scale assemblies. For longer leads, see 100mm lead version. For waterproof or standard versions, check IP67-rated model or no-lead model.

Model: ECM-B9745AL30RC-L15
Dimensions: 9.7 × 4.5 mm
Directivity: Omnidirectional
Sensitivity: -30 dB ± 2
Impedance: 2.2 kΩ
S/N Ratio: 74 dB
Max SPL: 110 dB
Operating Voltage: 2 Vdc
Frequency Response: 50 Hz ~ 16 kHz

Request Information / Sample

Tell us your project stage. Our engineering team will respond accordingly.

Lead Time

Samples: 1–3 weeks
Mass production: 2–4 weeks

Customization

Application-based engineering support
Structure / sensitivity / acoustic tuning

MOQ

3,000 pcs
Per model / per production batch

Certification

RoHS & UL compliant
Industrial reliability assured

Technical Specifications

The ECM-B9745AL30RC-L15 is a 9.7 × 4.5 mm omnidirectional microphone capsule optimized for compact assembly with pre-attached 15mm leads. This design facilitates integration into small-scale devices while maintaining high performance.

Delivering -30dB sensitivity, a frequency range of 20Hz to 16KHz, and a signal-to-noise ratio of 74dB, the capsule captures sound with precision over long distances. Its Korean RF mic core ensures stable and reliable audio performance, making it an excellent fit for compact remote pickup devices and condenser microphones.

Standard Test Circuit

Test conditions: RL = 2.2KΩ, Vs = 2V, C = 1μF.

Typical Frequency Response

Frequency response range: 50Hz–10kHz. The curve remains relatively flat from 50Hz to around 3kHz, then gradually rolls off toward higher frequencies. This provides reliable clarity in the low and mid ranges while naturally attenuating highs.

Dimensions (UNIT: mm)

Appearance Dimension

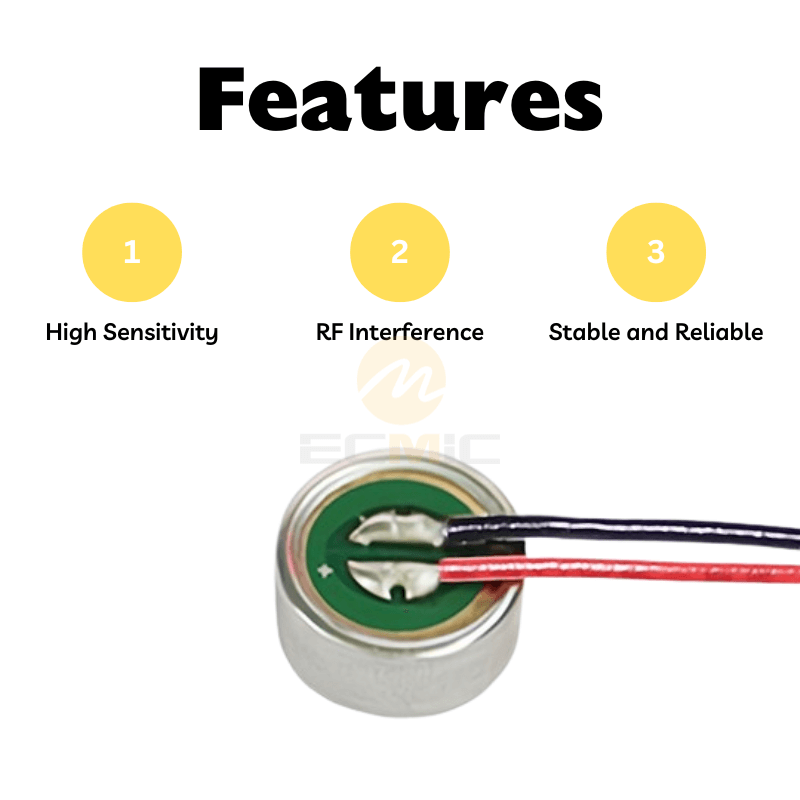

Measuring 9.7mm in diameter and 4.5mm in height, this unit features a dustproof mesh on the front and a sealed back with no acoustic port. It comes pre-soldered with 15mm parallel wires for easy PCB or lead integration.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
