9.7mm IP67 Ruggedized Electret Mic for Business Desk Phones

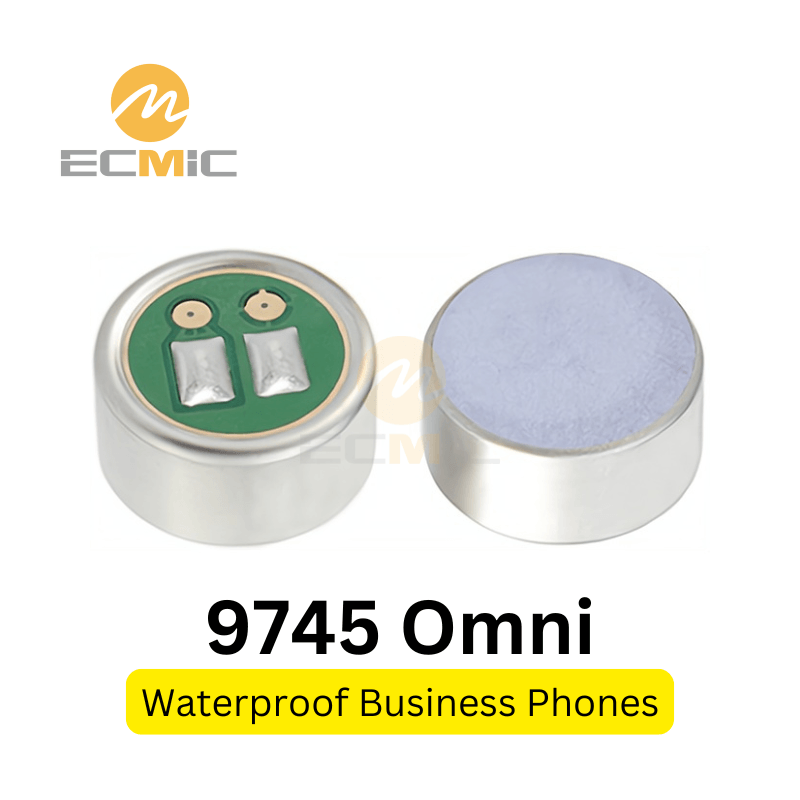

The ECM-F9745AL36-IP67 is a 9.7 × 4.5 mm omnidirectional electret microphone capsule with IP67 waterproof protection, designed for business desk phones and ruggedized communication devices. It offers -36dB ±2 sensitivity and 65dB SNR for reliable voice pickup in demanding environments.

Model: ECM-F9745AL36-IP67
Dimensions: 9.7 × 4.5 mm
Directivity: Omnidirectional
Sensitivity: -36 dB ± 2
Impedance: 2.2 kΩ
S/N Ratio: 65 dB
Max SPL: 110 dB
Operating Voltage: 2 Vdc
Frequency Response: 50 Hz ~ 15 kHz
Current Consumption: 500 μA

Request Information / Sample

Tell us your project stage. Our engineering team will respond accordingly.

Lead Time

Samples: 1–3 weeks
Mass production: 2–4 weeks

Customization

Application-based engineering support
Structure / sensitivity / acoustic tuning

MOQ

3,000 pcs
Per model / per production batch

Certification

RoHS & UL compliant
Industrial reliability assured

Technical Specifications

Our 9745 IP67-rated waterproof microphone head features high sensitivity, making it ideal for business desk phones, ruggedized phones, and waterproof communication equipment. Custom-produced with a Korean RF JFET and high-quality American waterproof mesh, it ensures stable and reliable performance.

Standard Test Circuit

Test circuit with RL=2.2KΩ, VS=2V, and C=1μF.

Typical Frequency Response

Frequency response decreases from 50Hz to 3kHz, then rises between 3kHz and 5kHz before gradually declining up to 20kHz.

Dimensions (UNIT: mm)

Appearance Dimension

Diameter 9.7mm, height 4.5mm, with a waterproof membrane on the front and no openings on the rear.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
