14mm Electret Condenser Microphone Element for Clear Conference

Electret Condenser Microphone Element for Clear Conference 14mm

The ECM-B1463UL34-683 is a versatile 14 × 6.3 mm unidirectional electret condenser microphone element, specifically engineered for use in conference microphones and speech-driven devices. With a well-balanced sensitivity of -34dB±2 and a signal-to-noise ratio of 75dB, this mic element ensures clear, intelligible voice capture, minimizing background noise for professional-grade audio clarity in meetings and communications.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For audio brands & OEMs
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

5,000 pcs (mixed models allowed)

Model: ECM-B1463UL34-683
Dimensions: 14 × 6.3 mm
Directivity: Unidirectional
Sensitivity: -34dB±2
Impedance: 2.2KΩ
S/N Ratio: 75dB
Max SPL: 110dB
Operating Voltage: 2Vdc
Frequency Response: 100Hz~10KHz

Tags: 14mm Electret Solder Pads Electret Vocal Mics

Technical Specifications

Our ECM-B1463UL34-683 unidirectional electret microphone head combines a sensitivity of -34±2dB with a 75dB signal-to-noise ratio, offering reliable performance in voice-centric environments. Known for its effective noise isolation and accurate sound pickup, this microphone head is ideal for achieving sharp and clear audio output in conference systems and communication equipment.

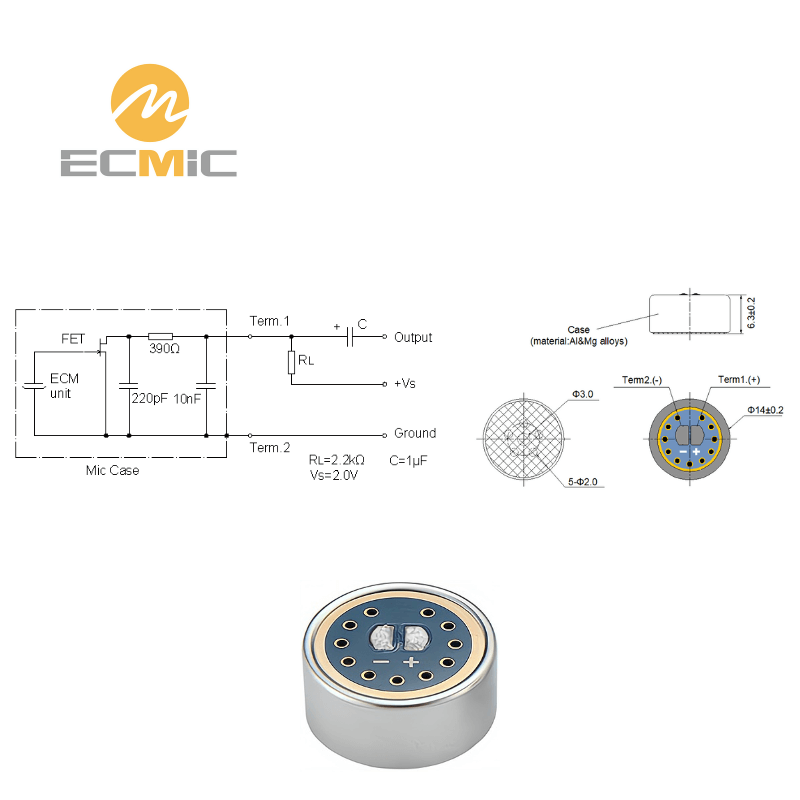

Standard Test Circuit

Tested using RL = 2.2KΩ, Vs = 2V, and C = 1μF.

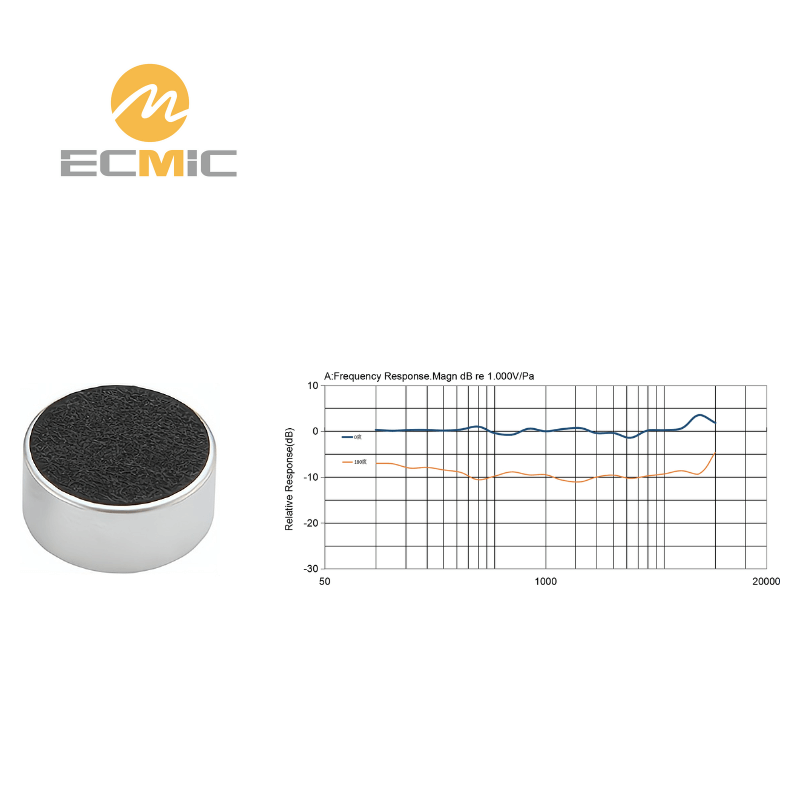

Typical Frequency Response

Frequency response spans 100Hz to 16kHz — flat in the low range, with a slight midrange dip, followed by a rise in the high frequencies.

Dimensions (UNIT: mm)

Appearance Dimension

Φ14 × 5mm capsule with a front dust mesh and a rear acoustic port.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
