14mm Electret Microphone with Source Output for Live Streaming

The ECM-B1450UL43-351 is a 14 × 5 mm unidirectional microphone capsule designed for live streaming applications. It features a sensitivity of -43dB±2 and a signal-to-noise ratio of 75dB, ensuring high-quality and clear audio performance.

Model: ECM-B1450UL43-351
Dimensions: 14 × 5 mm
Directivity: Unidirectional
Sensitivity: -43 dB ± 2
Impedance: 680 Ω
S/N Ratio: 75 dB
Max SPL: 110 dB
Operating Voltage: 1.5 Vdc
Frequency Response: 100 Hz ~ 20 kHz
Current Consumption: 500 μA

Request Information / Sample

Tell us your project stage. Our engineering team will respond accordingly.

Lead Time

Samples: 1–3 weeks
Mass production: 2–4 weeks

Customization

Application-based engineering support
Structure / sensitivity / acoustic tuning

MOQ

3,000 pcs
Per model / per production batch

Certification

RoHS & UL compliant
Industrial reliability assured

Technical Specifications

Our 1450 unidirectional microphone head features source output, offering a high signal-to-noise ratio, high fidelity, and excellent sound reproduction.

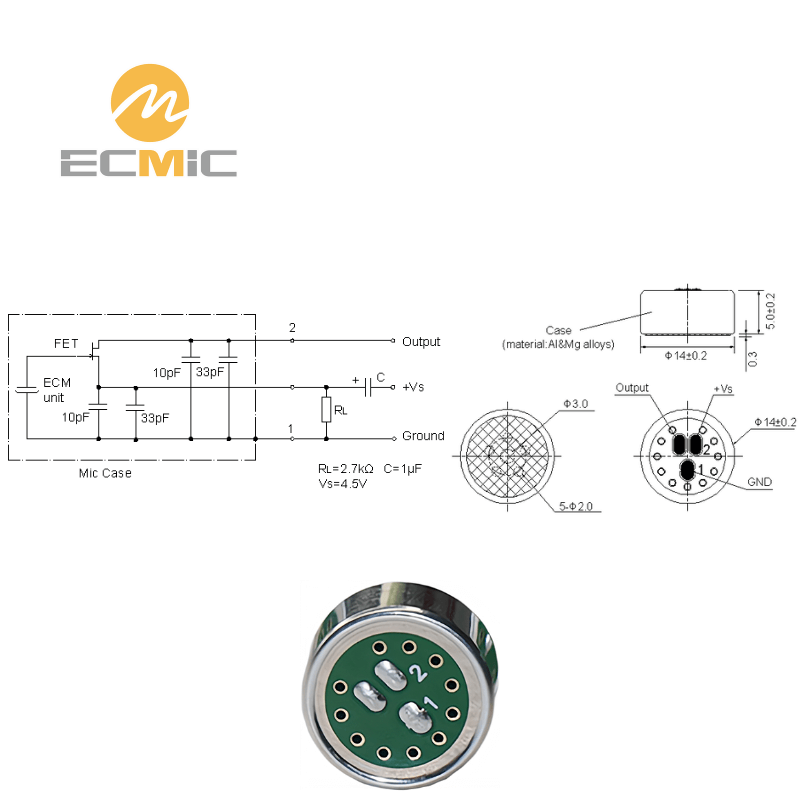

Standard Test Circuit

Test conditions: RL = 2.7KΩ, VS = 4.5V, C = 1μF.

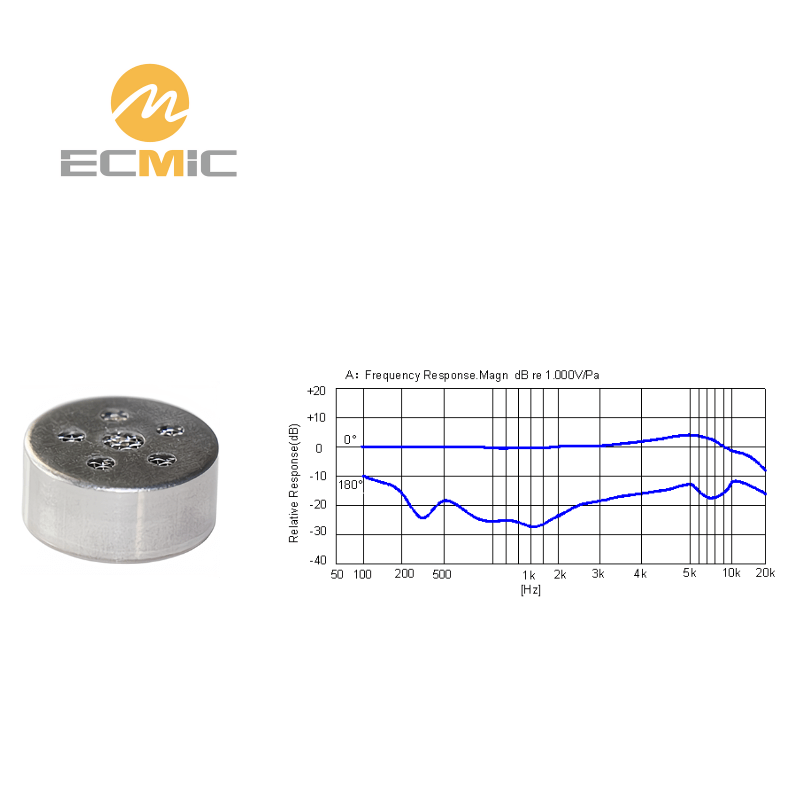

Typical Frequency Response

Response is relatively flat from 100Hz to 3kHz, rises notably between 3kHz and 5kHz, then gradually declines toward 20kHz.

Dimensions (UNIT: mm)

Appearance Dimension

Capsule measures 14mm in diameter and 5mm in height, featuring a front dust mesh and a rear acoustic port.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
