6mm Electret Microphone Capsule with Pins for UHF Wireless Microphones

Electret Microphone Capsule with Pins for UHF Wireless Microphones 6mm

The ECM-F6027AP2.8-SBC is a 6 x 2.7 mm omnidirectional electret mic capsule with 2 pins, -40dB±2 sensitivity, and a 60dB SNR, designed for wireless lapel microphone applications.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For audio brands & OEMs
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

5,000 pcs (mixed models allowed)

Model: ECM-F6027AP2.8-SBC
Dimensions: 6 × 2.7 mm
Directivity: Omnidirectional
Sensitivity: -40 dB ± 2
Impedance: 2.2 kΩ
S/N Ratio: 60 dB
Max SPL: 100 dB
Operating Voltage: 3 Vdc
Frequency Response: 50 Hz ~ 16 kHz

Tags: 6mm Electret Conference Mics Pin-type Electret

Technical Specifications

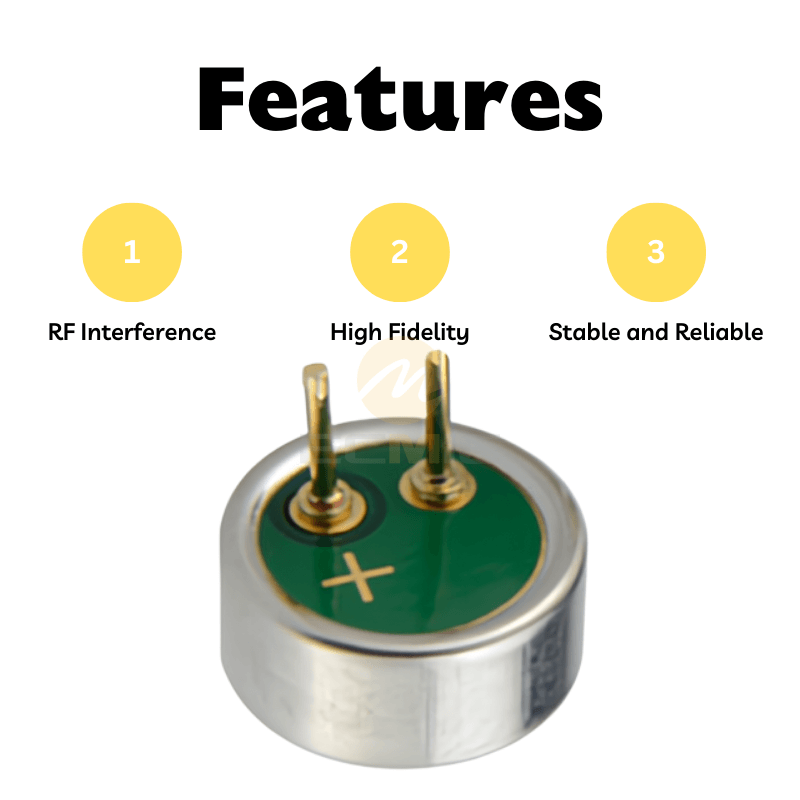

Our 6027 omnidirectional plug-in microphone core features dual capacitors for effective anti-interference capabilities.

Standard Test Circuit

Test conditions: Load resistor (RL) = 2.2kΩ, Supply voltage (VS) = 3V, Coupling capacitor (C) = 1μF.

Typical Frequency Response

The frequency response spans from 50Hz to 16kHz. The curve remains flat up to around 4kHz, then gradually rises until 10kHz, where it begins to roll off.

Dimensions (UNIT: mm)

Appearance Dimension

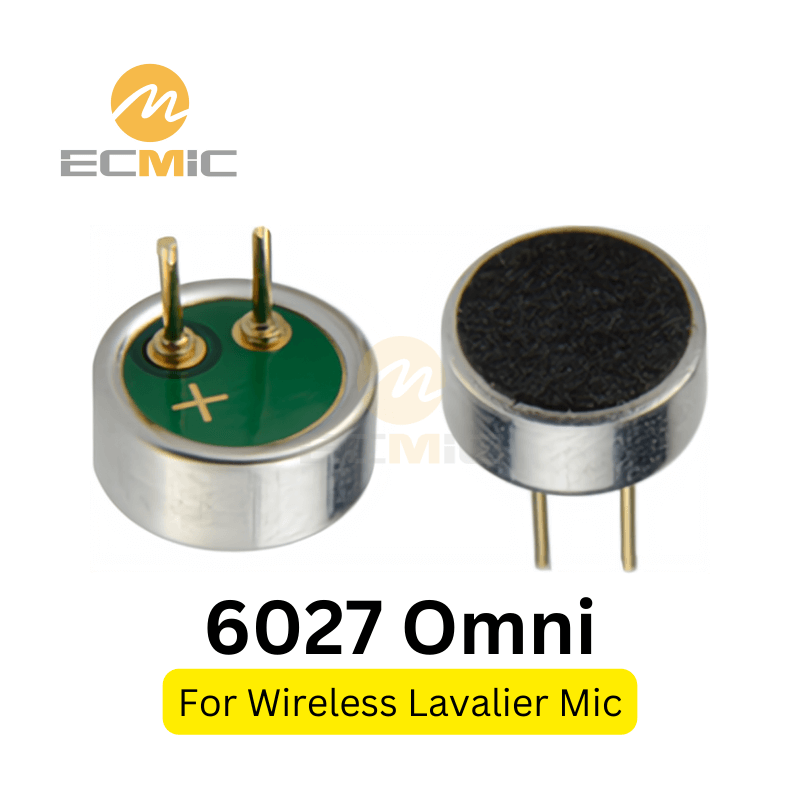

Diameter: 6.0mm; Height: 2.7mm. The front is covered with a dustproof mesh; the back is sealed with no sound port. Equipped with 2.8mm pin terminals for secure PCB connection.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
