Dynamic Conference Headset Microphone Element 19mm

19mm Dynamic Conference Headset Microphone Element

ECM-DM1910BK600 microphone capsule size and frequency response

Durable handheld dynamic microphone element for live vocal performances and public speaking.

Dynamic microphone capsule integrated into boom headsets, ideal for hands-free communication in sports and call centers.

Dynamic microphone capsule tailored for podcasting and streaming, offering clear voice capture with minimal background noise.

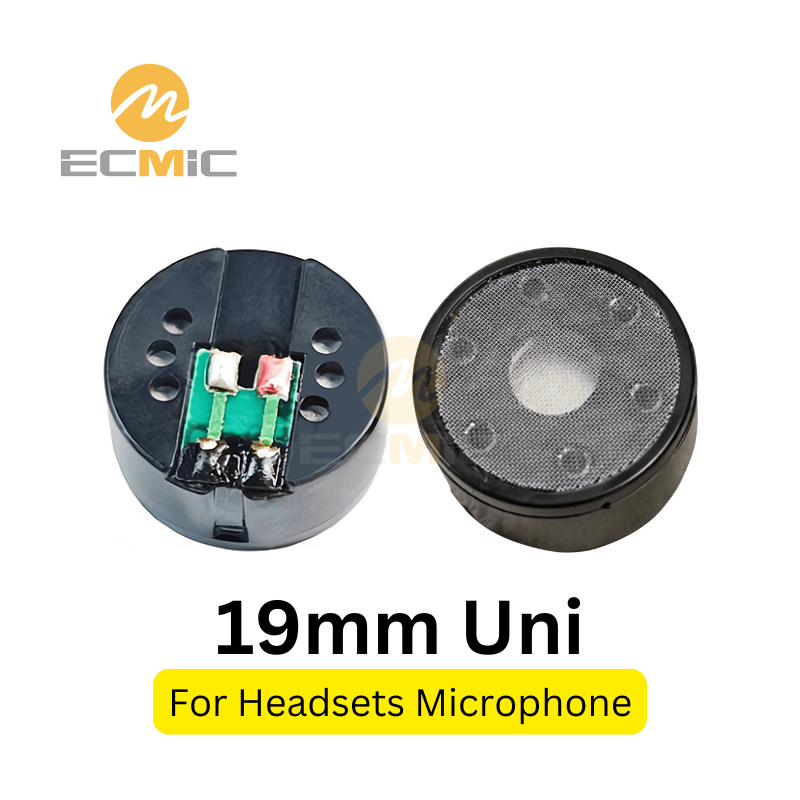

Designed for communication headsets, KTV and handheld microphones, podcasting equipment, and voice transmission systems, this 19 × 10 mm unidirectional dynamic microphone capsule offers clear and focused vocal pickup with a 100Hz–10kHz frequency response and 600Ω impedance.

Model: ECM-DM1910BK600
Dimensions: 19 × 9.6 mm
Weight: 3.7 g
Directivity: Unidirectional
Sensitivity: -56 dB ± 3
Impedance: 600 Ω ± 15%
S/N Ratio: 56 dB
Frequency Response: 100 Hz ~ 10 kHz

Request Information / Sample

Tell us your project stage. Our engineering team will respond accordingly.

Lead Time

Samples: 1–3 weeks
Mass production: 2–4 weeks

Customization

Application-based engineering support
Structure / sensitivity / acoustic tuning

MOQ

3,000 pcs
Per model / per production batch

Certification

RoHS & UL compliant
Industrial reliability assured

Technical Specifications

The ECM-DM1910B600-250219 is a compact dynamic microphone capsule optimized for integration into communication headsets—including boom microphone designs—handheld vocal mics, and voice-driven devices. Its 100Hz to 10kHz frequency response and 600Ω impedance ensure clear and intelligible vocal performance in a wide range of everyday and professional environments.

With a unidirectional polar pattern, it effectively reduces background noise, focusing on the user’s voice—making it ideal for use in call centers, intercoms, podcasting setups, and karaoke microphone systems. The 19mm form factor offers easy integration into slim headset housings, handheld mic assemblies, or other space-constrained designs.

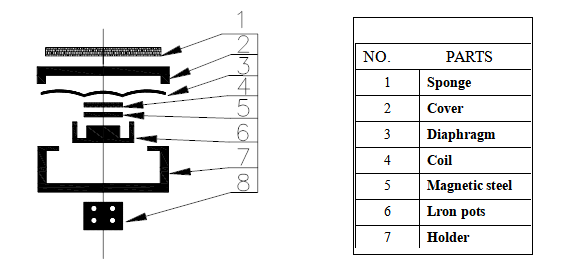

Exploded View & Parts List

Dynamic Part

Parts List: Sponge, Cover, Diaphragm, Coil, Magnetic Steel, Iron Pot, Holder, PCB + Tin.

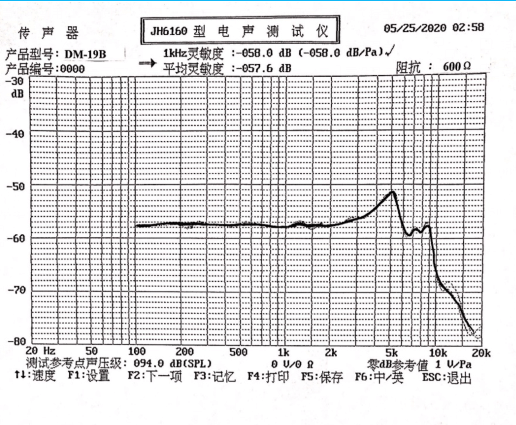

Frequency Response Curve

Response Curve

Frequency Response: 100Hz–10kHz. Designed for clear and reliable voice pickup in standard vocal applications.

Dimensions (UNIT: mm)

Appearance Size

Dimensions: Diameter: 19mm; Height: 9.6mm.

Reliability Tests

High Temperature Test: Microphone subjected to +60℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Low Temperature Test: Microphone subjected to -25℃ ±3℃ for 96 hours with 20-50% humidity, followed by 6 hours of normal temperature lay.

Humidity Test: Microphone exposed to 40℃ and 90-95% relative humidity for 96 hours, followed by 6 hours of normal temperature lay.

Temperature Cycle Test: Microphone subjected to rapid temperature changes from normal temperature to +60℃ ±3℃ for 1 hour (normal temperature lay for 3 hours) and then to -25℃ ±3℃ for 1 hour (normal temperature lay for 3 hours).

Sensitivity Stability: Sensitivity remains within ±3dB of the initial sensitivity after each environmental test.
