Electret Condenser Microphone for Recorder Replacement

The ECM-B6027AML38-728 is a 6 × 2.7 mm omnidirectional microphone capsule with a sensitivity of -38dB±2 and a signal-to-noise ratio of 75dB. It is ideal for professional applications such as recording pens and lapel microphones, ensuring clear and accurate sound capture.

Model: ECM-B6027AML38-728
Dimensions: 6 × 2.7 mm
Directivity: Omnidirectional
Sensitivity: -38 dB ± 2
Impedance: 2.2 kΩ
S/N Ratio: 75 dB
Max SPL: 120 dB
Operating Voltage: 2 Vdc
Frequency Response: 50 Hz ~ 20 kHz
Current Consumption: 500 μA

Request Information / Sample

Tell us your project stage. Our engineering team will respond accordingly.

Lead Time

Samples: 1–3 weeks
Mass production: 2–4 weeks

Customization

Application-based engineering support
Structure / sensitivity / acoustic tuning

MOQ

3,000 pcs
Per model / per production batch

Certification

RoHS & UL compliant
Industrial reliability assured

Technical Specifications

Our 6027 omnidirectional voice recorder microphone head features ultra-low self-noise, HiFi audio fidelity, and ultra-low power consumption. It offers a high signal-to-noise ratio and low noise, ensuring superior performance for clear and accurate audio recording.

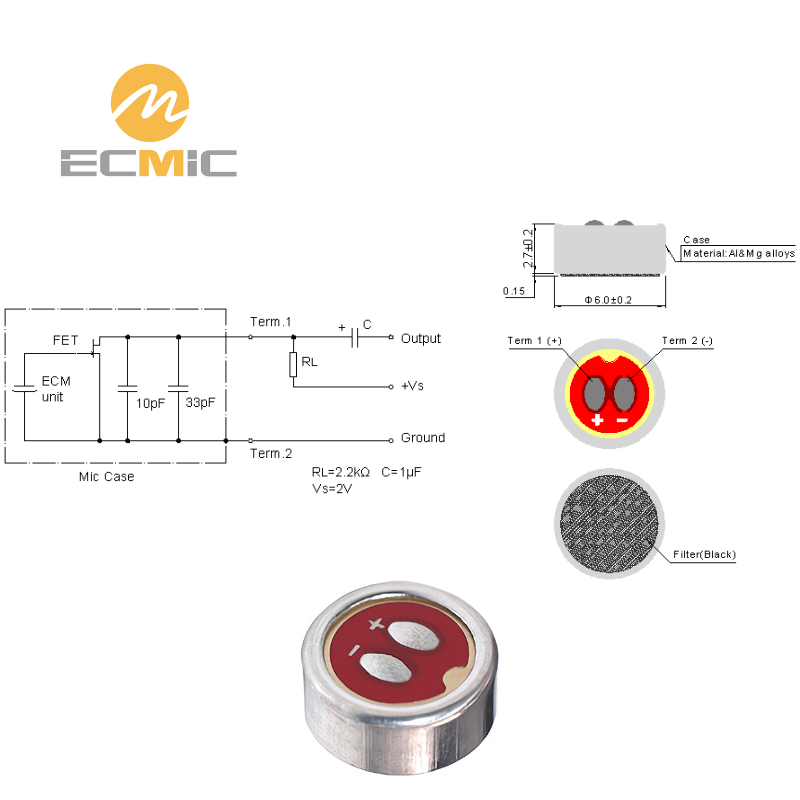

Standard Test Circuit

ECM-B6027AML38 Test Circuit: 2.2kΩ bias, 2V supply, 1μF output

2.2kΩ bias resistor, 2V DC supply, 1μF output capacitor. Standard voice frequency configuration.

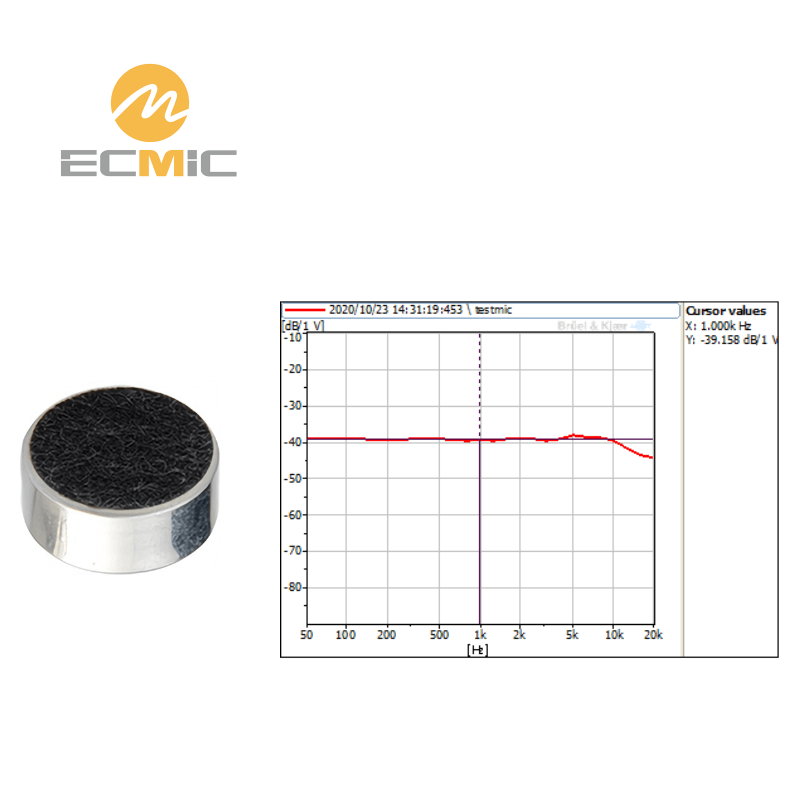

Typical Frequency Response

ECM-B6027AML38 Frequency Response: Flat response with gentle roll-off above 10kHz

Flat frequency response with controlled attenuation above 10kHz.

Dimensions (Unit: mm)

ECM-B6027AML38 Dimensions: Φ6×2.7mm with front dust mesh (sealed back)

Φ6×2.7mm compact housing with front dust mesh (non-ported design).

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
