6mm Ukulele Pickup Electret Microphone Capsule with Pins

Ukulele Pickup Electret Microphone Capsule with Pins 6mm

The ECM-B6022AP2.8-49 is a 6 × 2.2 mm omnidirectional electret mic capsule with 2 pins, -49dB±2 sensitivity, and 55dB SNR. Perfect for ukulele pickups, metronomes, and instrument recording.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
Suitable for brand owners and manufacturers only.
📞 Please contact us to discuss your project and order details.

🧪 Sample

Free sample – shipping extra

🧭 Trial Order

From 500 pcs (1st order only)

📦 MOQ

5,000 pcs (mixed models allowed)

Model: ECM-B6022AP2.8-49
Dimensions: 6 × 2.2 mm
Directivity: Omnidirectional
Sensitivity: -49dB±2
Impedance: 2.2KΩ
S/N Ratio: 55dB
Max SPL: 110dB
Operating Voltage: 2Vdc
Frequency Response: 20Hz~16KHz

Tags: 6mm Electret Instrument Mics Pin-type Electret

Performance Overview

Produced using environmentally friendly materials and imported Panasonic JFET, our 6022 omnidirectional microphone cores ensure superior performance.

Technical Specifications

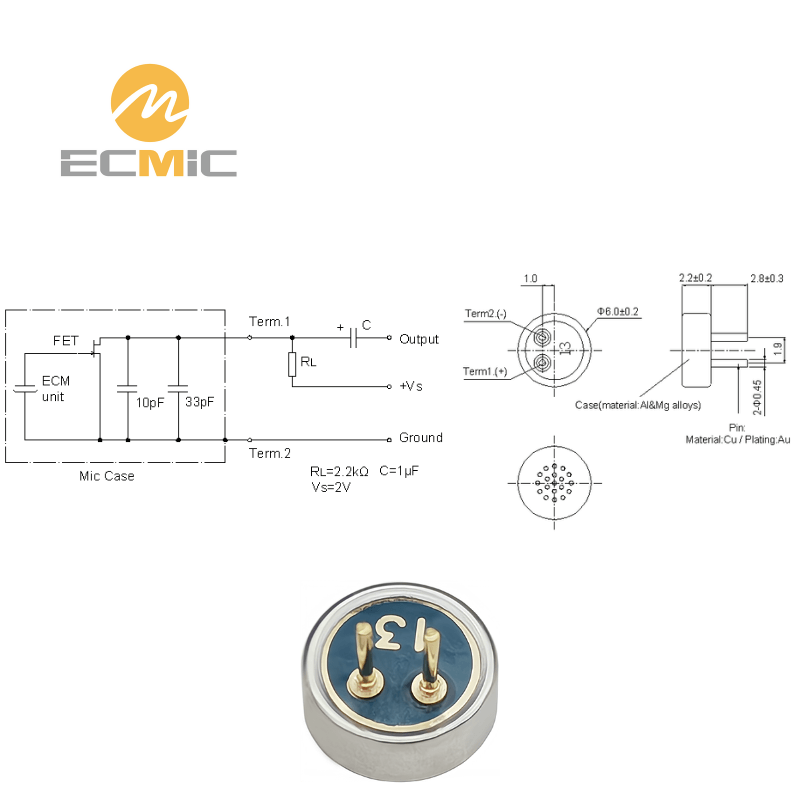

Standard Test Circuit

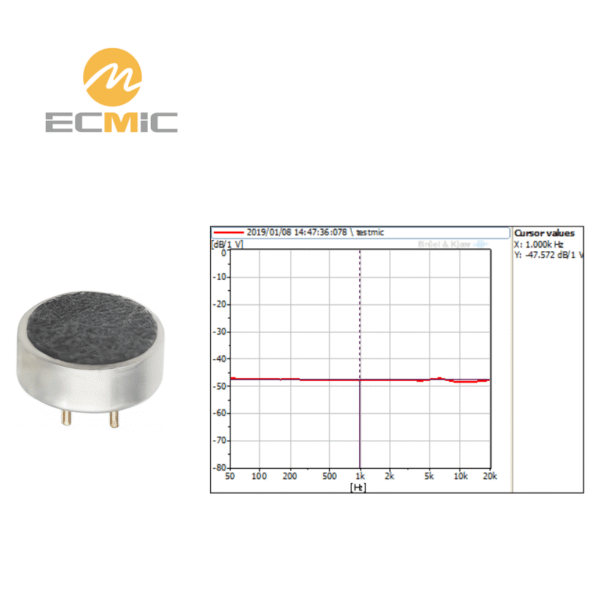

Typical Frequency Response

Dimensions (UNIT: mm)

Appearance Dimension

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
