9.7mm Walkie Talkie Electret Microphone Capsule with Pins

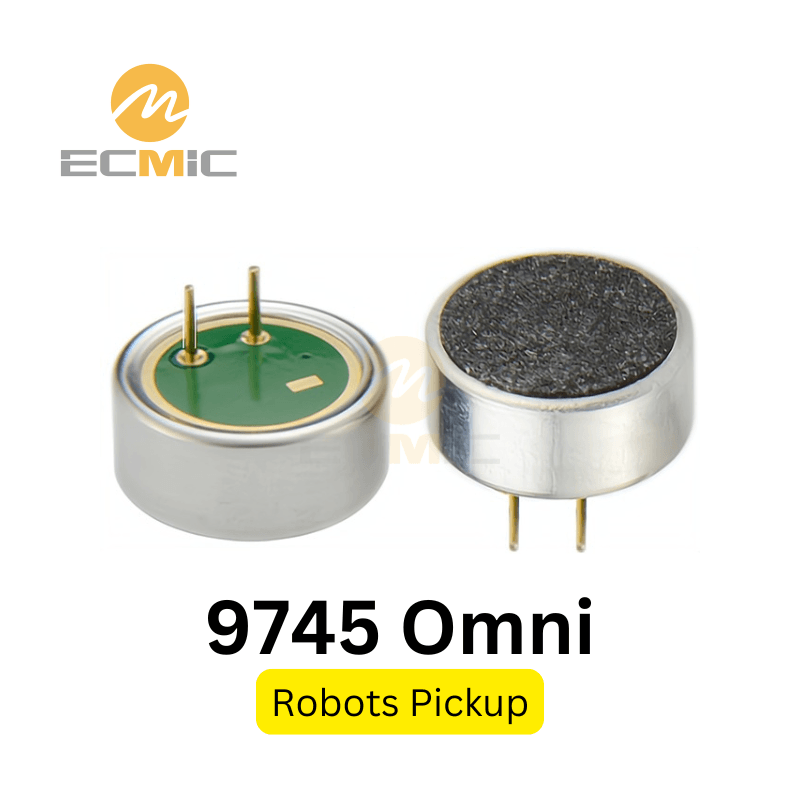

Walkie Talkie Electret Microphone Capsule with Pins 9.7mm

The ECM-B9745AP2.8-30RC-597 is a 9.7 x 4.5 mm omnidirectional electret mic capsule with 2 pins, -30dB±2 sensitivity, and a 76dB SNR, ideal for business intercom equipment pickup.

🎙️ ECMIC – Microphone Components Manufacturers
For audio equipment manufacturers & brands
Wholesale & OEM/ODM | 📧 Contact us

🧪 Sample

Standard model free
Shipping cost applies

🧭 Trial Order

From 200 pcs
Test before full order

📦 MOQ

5,000 pcs
Full order minimum

Model: ECM-B9745AP2.8-30RC-597
Dimensions: 9.7 × 4.5 mm
Directivity: Omnidirectional
Sensitivity: -30 dB ± 2
Impedance: 2.2 kΩ
S/N Ratio: 76 dB
Max SPL: 110 dB
Operating Voltage: 2 Vdc
Frequency Response: 50 Hz ~ 5000 Hz
Current Consumption: 500 μA

Tags: 9.7mm Electret Intercom Mics Pin-type Electret

Technical Specifications

Featuring full directionality and an internal dual-capacitor design for anti-interference, our 9745 high-sensitivity microphone head guarantees superior performance. Utilizing Korean JFET components, it delivers stability and reliability in every recording.

Standard Test Circuit

ECM-B9745AP2.8-30RC Test Circuit: 2.2kΩ bias, 2V supply, 1μF output

2.2kΩ bias resistor, 2V supply, 1μF output cap. Optimized for voice applications.

Typical Frequency Response

ECM-B9745AP2.8-30RC Frequency Response: Flat with decline after 2kHz

Flat response with gradual decline above 2kHz.

Dimensions (Unit: mm)

ECM-B9745AP2.8-30RC Dimensions: Φ9.7×4.5mm with front dust mesh (sealed back)

Φ9.7×4.5mm with front dust mesh (sealed back design). Equipped with 2.8mm pins, with 2.5mm spacing.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
