6mm Omnidirectional Waterproof Electret Microphone Capsule with Wire Leads

6mm Waterproof Wireless Interview Microphone Capsule with Leads

Waterproof Wireless Interview Microphone Capsule with Leads 6mm

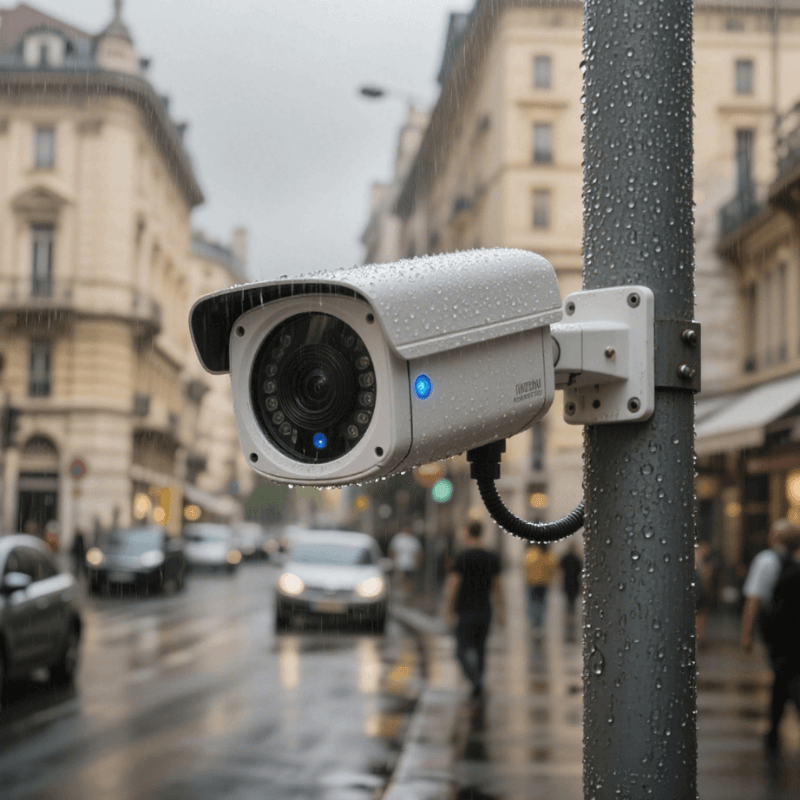

Outdoor security camera equipped with 6mm waterproof omnidirectional microphone capsule for clear audio monitoring

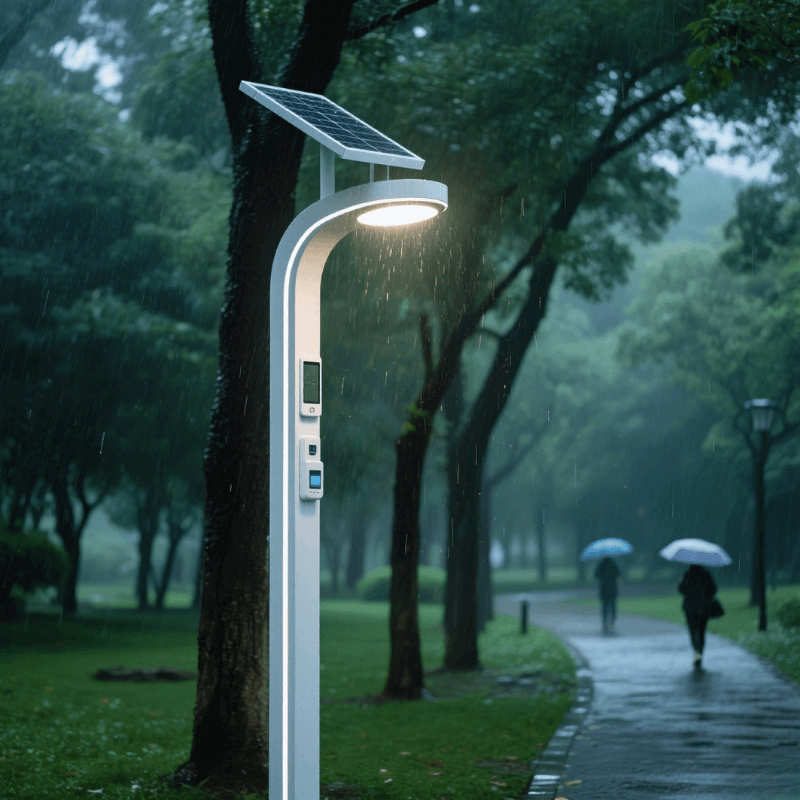

Smart safety pole featuring waterproof omnidirectional microphone capsule for environmental noise monitoring and public safety

Rugged 6mm waterproof omnidirectional electret microphone capsule with double-shielded twisted pair leads and pre-soldered terminals. Ideal for outdoor audio capture in security systems, smart poles, kiosks, and other embedded applications. See the ECM-B6027AL30RC for a version without waterproof features.

🚫 Factory direct sales only – no retail.
Minimum order quantities (MOQs) apply.
For audio brands & OEMs
📞 Contact us for orders & inquiries.

🧪 Sample

Free (std. models) + shipping

🧭 Trial Order

From 200 pcs (1st order only)

📦 MOQ

5,000 pcs (mixed models allowed)

Model: ECM-B6027AL30-L100DFS
Dimensions: 6 × 2.7 mm
Directivity: Omnidirectional
Sensitivity: -30dB±2
Impedance: 2.2KΩ
S/N Ratio: 74dB
Max SPL: 100dB
Operating Voltage: 2Vdc
Frequency Response: 20Hz~8000Hz

Tags: 6mm Electret Conference Mics Wire Connector Electret

Technical Specifications

The B6027AL30-L100DFS is a rugged 6mm waterproof omnidirectional electret microphone capsule designed for outdoor audio capture in embedded systems. With a sensitivity of -30dB and a signal-to-noise ratio of 74dB, it delivers clear and consistent sound performance across a 20Hz to 8000Hz frequency range, making it ideal for general environmental monitoring and voice pickup in outdoor conditions.

Engineered for durability, this capsule integrates waterproof mesh protection for reliable performance in wet or humid environments. The 100mm double-shielded twisted pair leads with pre-attached terminals provide strong EMI resistance and convenient integration with PCB assemblies. Common applications include security cameras, smart poles, outdoor kiosks, and other voice-enabled outdoor electronics.

Standard Test Circuit

ECM-B6027AL30-L100DFC Standard Test Circuit: 2.2kΩ bias, 2V supply, 1μF output

Tested with a 2.2kΩ bias resistor, 2V DC supply, and 1μF output capacitor.

Typical Frequency Response

ECM-B6027AL30-L100DFC Frequency Response Curve

Response is smooth from 50Hz to 5kHz, with a slight rise followed by a gradual roll-off beginning around 8kHz.

Dimensions (UNIT: mm)

Dimensions of ECM-B6027AL30-L100DFC: Φ6×2.7mm

Compact capsule measuring Φ6 × 2.7mm, featuring a front waterproof film and sealed back; additional rubber sleeve enhances water resistance and provides vibration protection.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
