10mm Unidirectional Electret Condenser Microphone Cartridge

The ECM-B1045UML44-464 is a compact 10 × 4.5 mm unidirectional microphone. With a sensitivity of -44dB±2 and a signal-to-noise ratio of 68dB, it excels at capturing clear sound.

Model: ECM-B1045UML44-464
Dimensions: 10 × 4.5 mm
Directivity: Unidirectional
Sensitivity: -44 dB ± 2
Impedance: 2 kΩ
S/N Ratio: 68 dB
Max SPL: 120 dB
Operating Voltage: 2 Vdc
Frequency Response: 100 Hz ~ 16 kHz
Current Consumption: 200 μA

Request Information / Sample

Tell us your project stage. Our engineering team will respond accordingly.

Lead Time

Samples: 1–3 weeks
Mass production: 2–4 weeks

Customization

Application-based engineering support
Structure / sensitivity / acoustic tuning

MOQ

3,000 pcs
Per model / per production batch

Certification

RoHS & UL compliant
Industrial reliability assured

Technical Specifications

The 1045 unidirectional microphone cores offer low noise, high fidelity, and Hi-Fi sound quality.

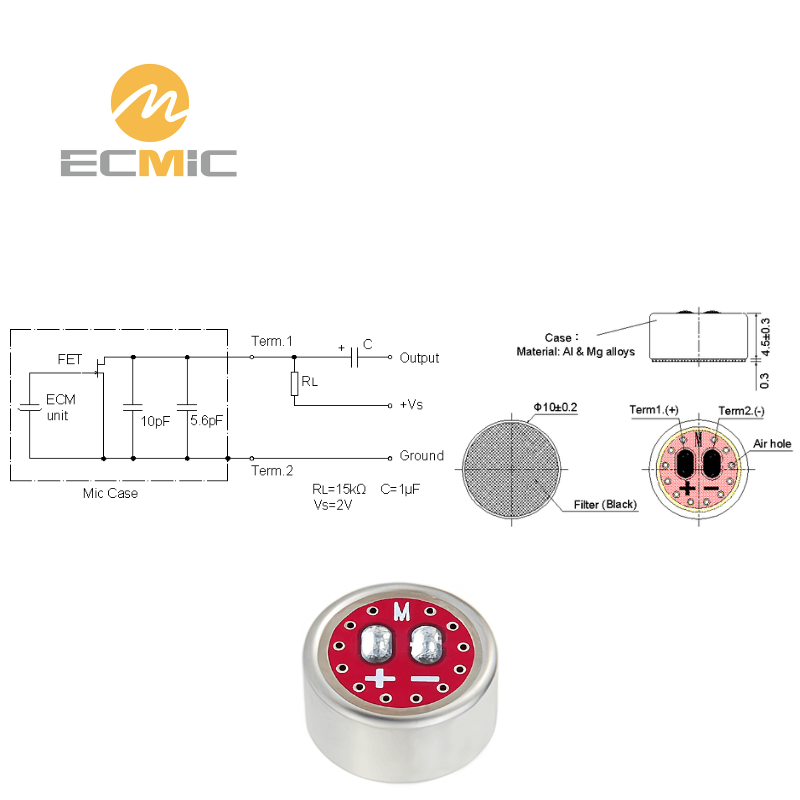

Standard Test Circuit

Test conditions: RL = 15KΩ, VS = 2V, C = 1μF.

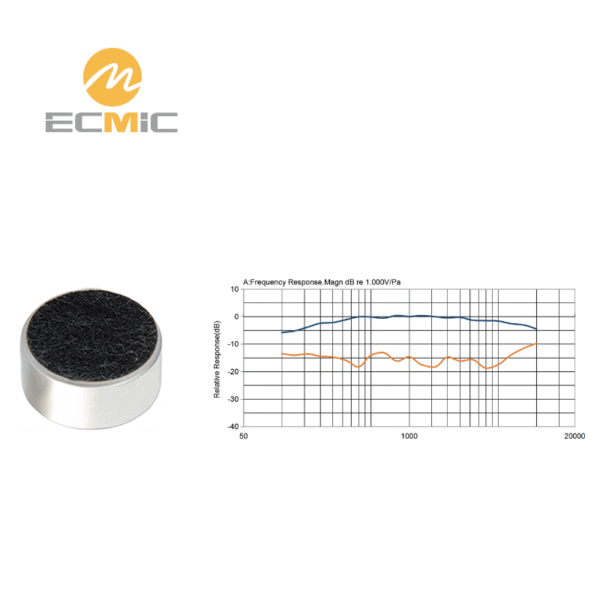

Typical Frequency Response

Frequency response rises steadily from 100Hz, with enhanced low-frequency gain, peaking around 5kHz before gradually tapering off.

Dimensions (UNIT: mm)

Appearance Dimension

Capsule measures 10mm in diameter and 4.5mm in height, featuring a front dust mesh and a rear acoustic port.

Packaging Overview

Standard packaging: 100 pcs per small box.
10 small boxes (1,000 pcs) are combined into one medium carton.
Several medium cartons are further packed into a large outer carton.
Pin-type microphones are protected with foam inside the small box.
Other types are packed directly or sealed in anti-static bags.

Reliability Tests

High Temperature Test: Microphone subjected to +80℃ for 100 hours, followed by 3 hours at room temperature.

Low Temperature Test: Microphone subjected to -40℃ for 100 hours, followed by 3 hours at room temperature.

Humidity & Heat Test: Microphone exposed to +55℃ and 85% relative humidity for 100 hours, followed by 3 hours at room temperature.

Thermal Shocking Test: Microphone subjected to [+80℃ 0.5H → room temp 1H → -40℃ 0.5H → room temp 1H] for 10 cycles, then exposed to room temperature for 3 hours.

Vibration Test: Microphone subjected to two hours of vibration in x, y, and z directions with frequencies of 10-55Hz and a 1.52mm amplitude.

Drop Test: Microphone dropped 5 times from a height of 1.0 meter onto a slippery marble floor, without packaging, and still performs normally.

Storage and Operating Temperature Range: Suitable for environments ranging from -35℃ to +60℃.
